Infratech Heaters

Infratech heaters are American-made infrared electric heaters, designed and built in Southern California for more than 60 years. Every unit uses a 304 stainless steel housing and quartz elements that turn about 90 percent of the electricity they draw into radiant heat, which is why architects, design builders and restaurant owners specify them for patios, pergolas, screened porches and commercial outdoor dining. BBQ Kitchen Pros is an authorized dealer for the full range: C, CD, W, WD and SL series heaters, the decorative Motif Collection, marine-grade models, and every switch, control panel and flush-mount frame that goes with them. Free shipping on orders over $99, no sales tax outside New York, and you talk to the owner when you call.

Short on time? Compare the series, check volts, watts and amps or jump to the FAQs.

Why Infratech Leads in Electric Infrared Heating

Most outdoor heaters warm the air, and the air leaves. Infratech's infrared radiant heat works the way sunshine does: it warms people, furniture and flooring directly, so you feel it within seconds and a breeze does not carry it away. There is no flame, no fuel tank and no exhaust, which makes these heaters eco-friendly to run and safe to mount in covered and semi-enclosed spaces where gas cannot go. A few things set the brand apart from other infrared heaters:

• Made in USA: designed, engineered and manufactured in California, with parts and support available for decades-old units.
• Efficiency: about 90 percent of input power becomes usable radiant heat, so a 4,000W heater delivers close to 4,000W of warmth.
• UL listed for indoor and outdoor use: the same heater can serve a screened porch, a sunroom, a garage or an open deck.
• Design flexibility: surface, wall, ceiling or fully recessed flush mounting, in stainless, black, bronze, white and beige finishes, plus laser-cut Motif fascias.
• Control options: from a simple on/off switch to multi-zone dimming, timers and home automation.

Infratech Heater Series: C, CD, W, WD, SL and Motif

The brand builds three outdoor heater series plus a slimline and a decorative line. They share the same elements and electronics; the differences are depth, element count and looks.

• C-Series (single element): the slim 2.5-inch-deep surface-mount heater, in 33, 39 and 61.25-inch lengths from 1,500W to 4,000W. The 33-inch 1500W model is the only 120V plug-in option in the range and covers about 25 square feet; 61.25-inch 3,000W to 4,000W units cover 64 to 100 square feet.
• CD-Series (dual element): the same 2.5-inch profile with two elements, 3,000W to 6,000W, for 64 to 121 square feet per heater. Choose CD when you need the most heat from one surface-mounted unit.
• W-Series (single element): a 3-inch-deep housing built for flush-mount and recessed ceiling installs, in the same lengths and wattages as the C-Series. Pair it with a flush-mount frame for a heater that sits level with the ceiling.

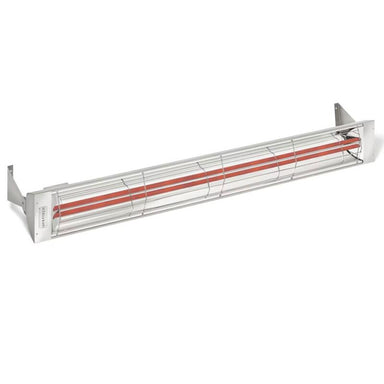

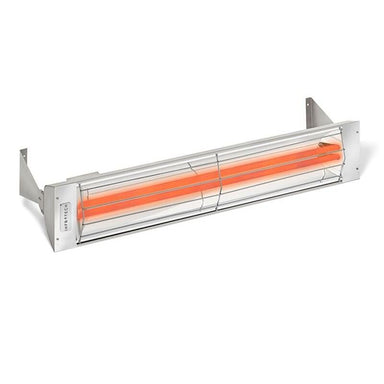

• WD-Series (dual element): the recessed version of the CD, 3,000W to 6,000W, including a 48-inch 5,200W model for ceilings that cannot take a 61-inch unit.

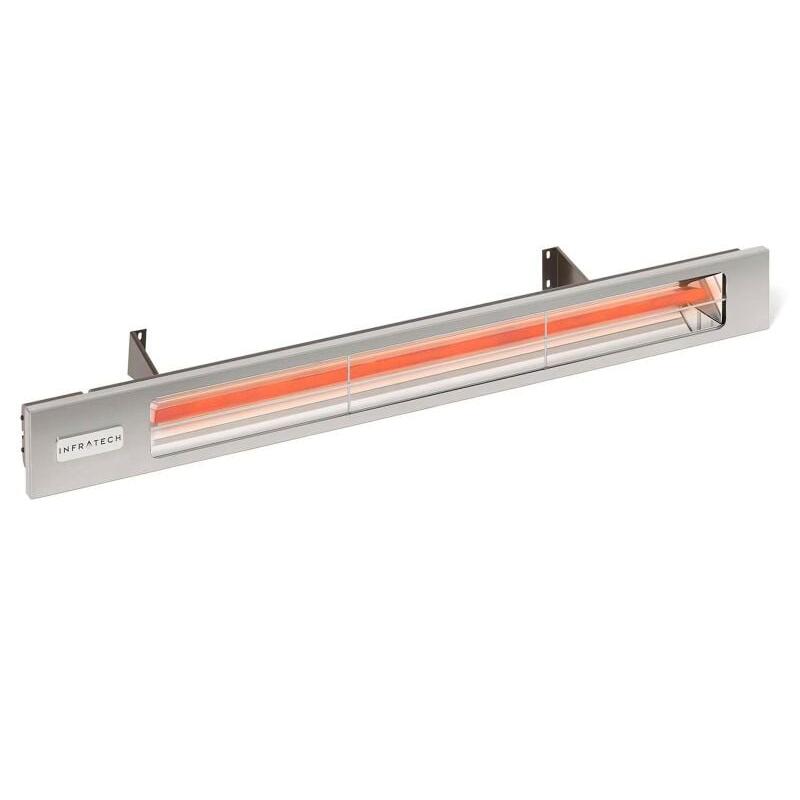

• SL-Series (slimline): a narrow single-element heater in 29.5, 42.5 and 63.5-inch lengths (1,600W to 4,000W) for modern pergolas and tight soffits where a standard housing would look heavy.

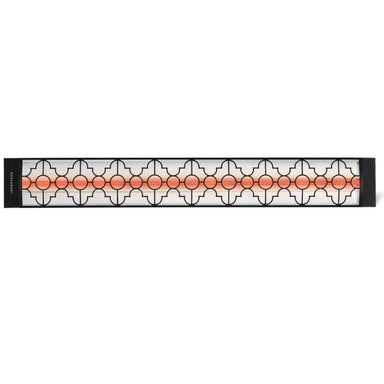

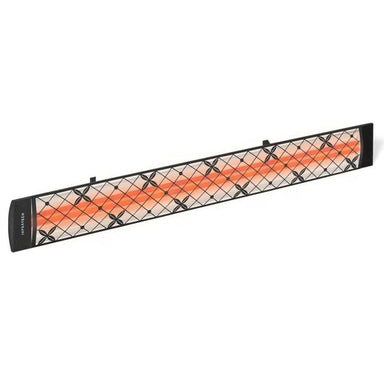

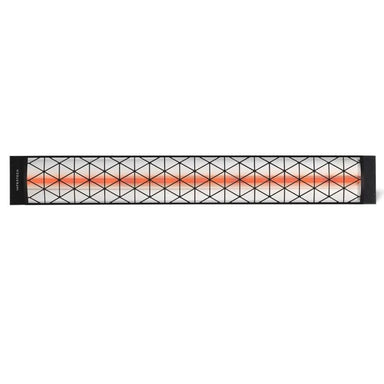

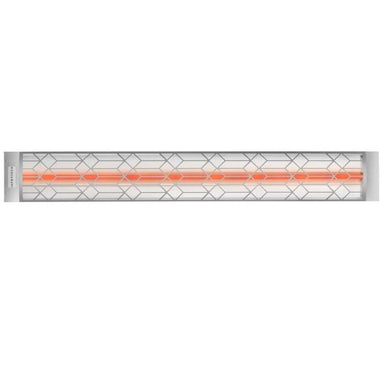

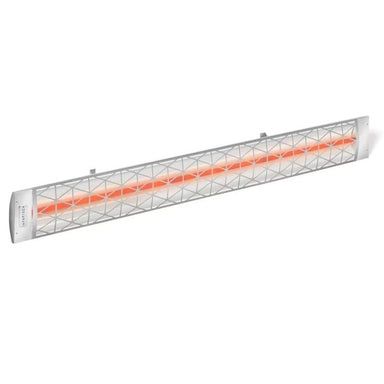

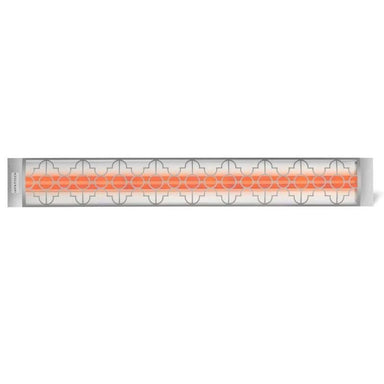

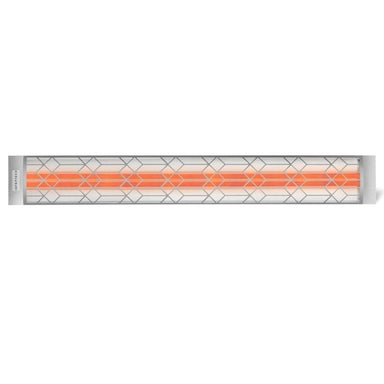

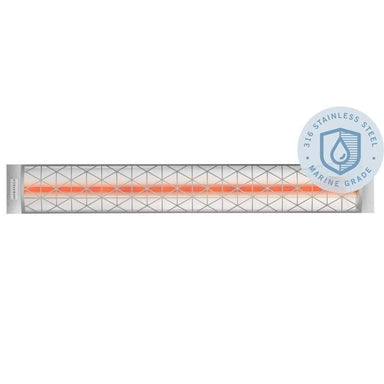

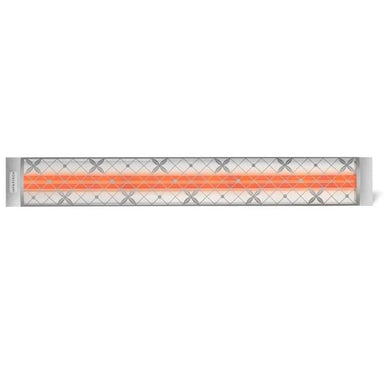

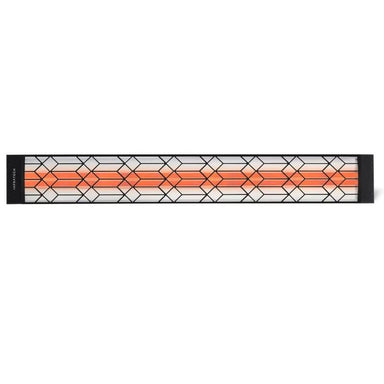

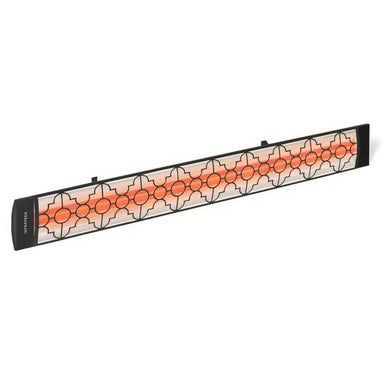

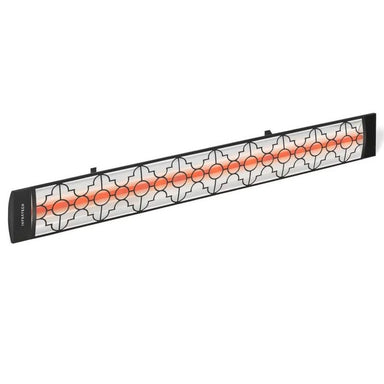

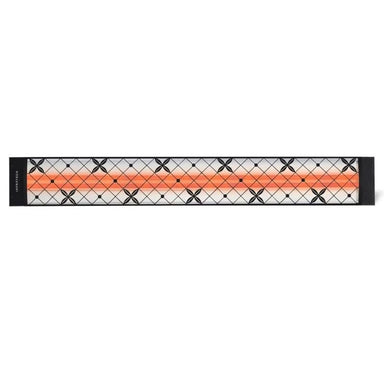

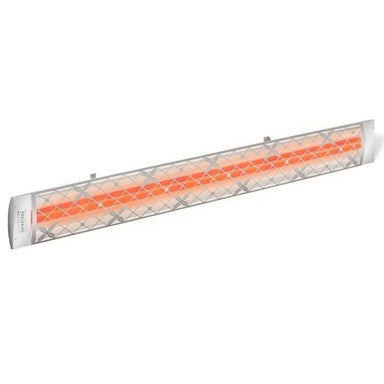

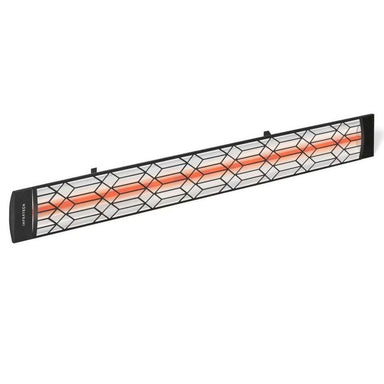

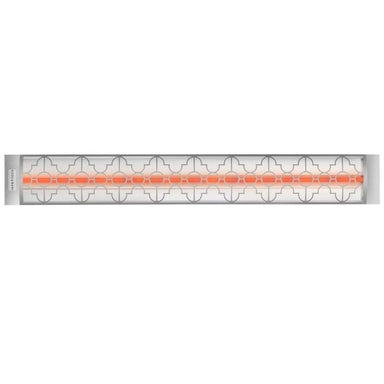

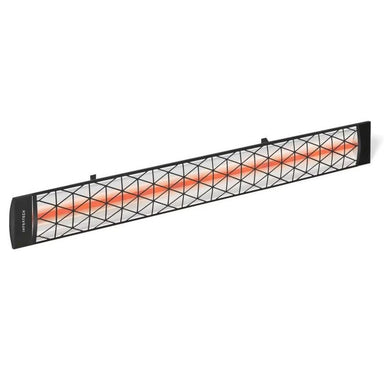

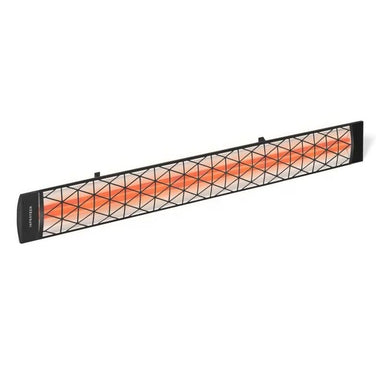

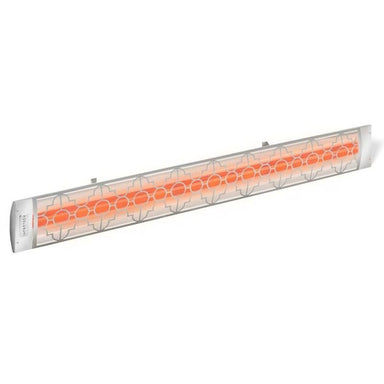

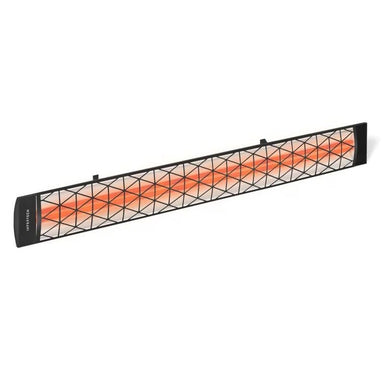

• Motif Collection: C and CD heaters with laser-cut decorative fascias in Traditional, Contemporary, Craftsman and Mediterranean patterns, in black or stainless steel, 2,000W to 6,000W in 39 and 61.25-inch lengths, with marine-grade versions for coastal homes.

Rule of thumb: pick C or CD if the heater mounts on a wall or an exposed beam, W or WD if it will be recessed into a finished ceiling, SL for narrow spaces, and Motif when the heater is part of the design.

Prices run from $606 for a 33-inch 1500W C-Series to about $1,324 for a 61.25-inch 6000W marine-grade Motif heater. Open a series page above to shop one line, or use the Wattage, Voltage and Heating Range filters on the left to narrow the full grid.

Choosing Volts, Watts and Amps for Your Infratech Heater

Every heater in the range is built for a specific voltage, so the first question is what your panel can supply. Watts set how much heat you get, volts set which circuit it runs on, and amps (watts divided by volts) set the breaker size your electrician will install.

• 120V: only the 33-inch 1,500W C-Series and W-Series heaters. They draw 12.5 amps and run on a dedicated 20-amp circuit, which makes them the easiest first heater for a small porch.
• 208V and 240V: the residential standard. A 3,000W heater draws 12.5 amps at 240V; a 4,000W heater about 17 amps; a 6,000W heater 25 amps at 240V (about 29 amps at 208V). Plan on a dedicated 20-amp circuit for 3,000W, and a 30- to 40-amp circuit for 6,000W, sized by your electrician to local code.
• 277V and 480V: commercial voltages for restaurants, hotels and multifamily buildings, where several heaters share a panel and the lower current per heater keeps wire sizes down.

Sizing by space: about 25 square feet per 1,500W, 49 per 2,000W, 64 per 3,000W, 100 per 4,000W, and 121 to 144 per 6,000W, mounted at the heights in the manual. Count the seats you want warm, not the whole patio, and plan one heater per seating zone. Two 4,000W heaters spread across a 12 by 16 foot dining area will outperform one 6,000W heater in the middle.

Where Infratech Heaters Work Best

Because they are UL listed for indoor and outdoor use and need less clearance than gas, Infratech outdoor heaters go places other patio heaters cannot:

• Covered patios and pergolas: wall or ceiling mounted over dining and lounge seating, the most common residential install.
• Screened porches and sunrooms: no exhaust means a screened porch stays usable into December without ventilation worries.
• Outdoor kitchens: mounted over the bar or island so the cook stays warm while guests eat.
• Garages and workshops: instant radiant heat where you stand, without heating the whole space.
• Commercial heaters for restaurants, hotels and clubs: 277V and 480V models with zone controls keep an outdoor dining room open year-round.
• Coastal and marine: marine-grade Motif heaters resist salt air on waterfront homes and docks.

Infratech Controls, Mounts and Flush-Mount Frames

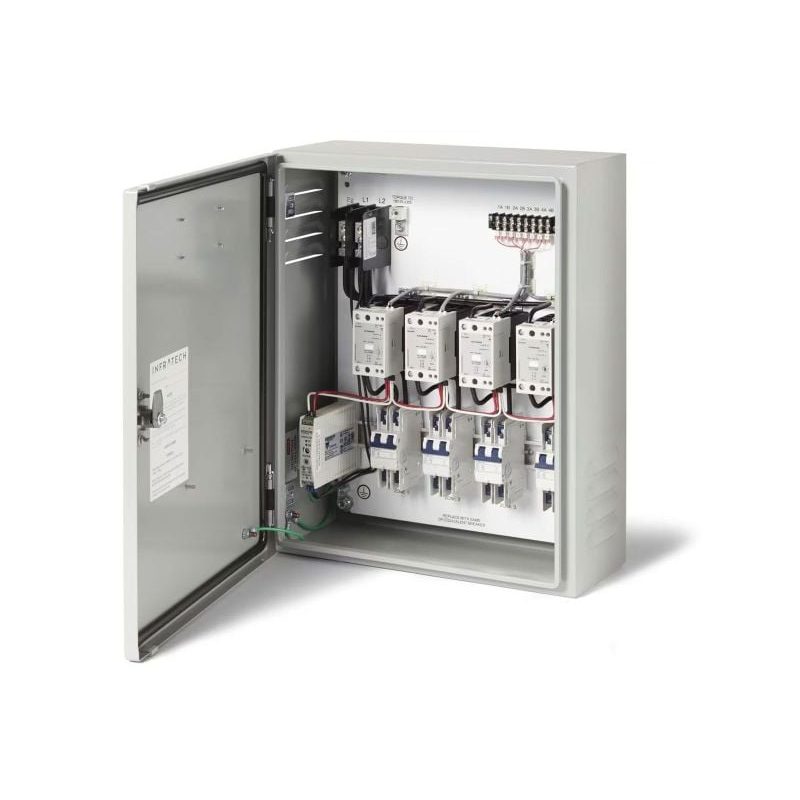

The heater is half the system. Infratech's switches and controls range from a weatherproof duplex stack switch for one heater, through analog and digital dimmers and timers, to the Universal Control Panel and home-management relay panels that run six or more zones from one location or a phone. A dimmer is the upgrade most customers thank us for later: on a mild evening a 6,000W heater at 50 percent is plenty, and it halves the running cost.

Mounting hardware is model-specific. Our Infratech mounting brackets and flush-mount frames collection has wall and ceiling brackets, drop-pole assemblies for high ceilings, and flush-mount frames for the W and WD series. Order them with the heater so the electrician has everything on day one.

Infratech vs Bromic

Customers often cross-shop Infratech with Bromic heaters, and both are excellent. The short version: Infratech is electric only, made in the USA, offers more voltages (120V to 480V), more lengths and a true flush-mount option, and its control system is the deepest in the category. Bromic adds natural gas and propane models for open, windy spaces, a portable, and a tinted-glass Platinum look. If your space is covered and wired, Infratech is usually the better value; if it is open and breezy, look at Bromic gas. Browse all patio heaters to compare across brands.

Installation, Parts, Manuals and Troubleshooting

Plan the circuit and control location before ceilings are closed, keep the clearances in the installation manual (they vary by model and mount), and have the work done by a licensed electrician. Each product page carries the current manual and spec sheet. The factory supports its heaters for the long haul: replacement quartz elements, end caps, switches and control components are available for current and older models, and most "heater not turning on" calls trace to a tripped breaker, a failed switch or a dimmer wired for the wrong voltage rather than the heater itself. Send us your model number and a photo and we will point you to the right part.
