Infratech 6 Relay Universal Control Panel
Ships In: 1-3 Days
- Description
- Warranty Information
- Shipping & Delivery
- Easy Returns

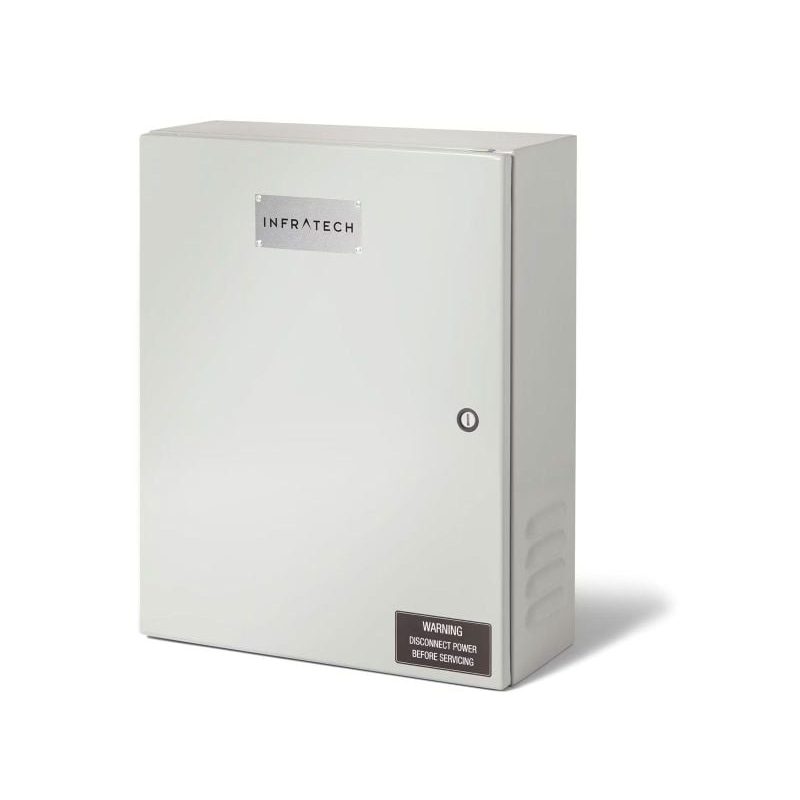

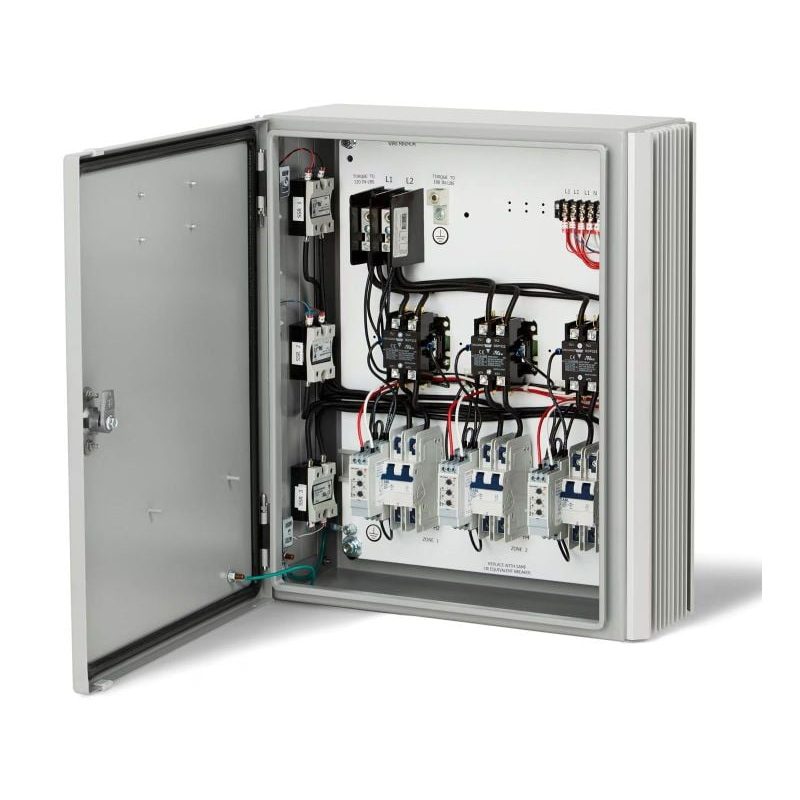

Infratech 6 Relay Universal Control Panel
| The Infratech 6 Relay Universal Control Panel is the most versatile control solution for Infratech electric infrared heaters, combining zone heating with WiFi, Bluetooth, and smart home voice control capability. This panel works with any standard 120V lighting dimmer, giving you the freedom to choose a switch that matches your home or commercial property decor. A 120V slide dimmer and timer are included for immediate use. For smartphone and voice control, any 120V WiFi or Bluetooth-enabled switch (sold separately) can be added, enabling control through apps compatible with Amazon Alexa, Apple Siri, and Google Home Assistant. Each relay handles up to 9,000 watts at 240V (8,000 watts at 208V), and this 6-relay panel supports a total capacity of 54,000W. Compatible with all Infratech single and dual element heaters from 208V through 480V, including C-Series, CD-Series, W-Series, WD-Series, SL-Series, and all Motif Collection models. The NEMA 4 rated weatherproof enclosure is UL 508 listed and custom built to your specifications. Made in the USA with a 3-year manufacturer warranty. |
Key Features
- 6 relays - up to 54,000W total capacity at 240V (48,000W at 208V)
- WiFi and Bluetooth capable via any 120V smart switch (sold separately)
- Voice control with Amazon Alexa, Apple Siri, and Google Home
- Works with any standard 120V lighting dimmer for design flexibility
- Includes 120V slide dimmer and timer for out-of-the-box control
- 0-100% variable heat intensity per zone
- Compatible with all Infratech 208V-480V heaters (C, CD, W, WD, SL, Motif Series)
- NEMA 4 rated weatherproof enclosure (20 x 16 x 7 in.)
- Each relay handles up to 9,000W at 240V with up to 3 heaters per relay
- UL 508 Listed | Made in the USA | 3-year warranty
Compatibility & Configuration Guide
|
How Does WiFi / Bluetooth Work? The Universal Control Panel uses a standard 120V dimmer interface. To add WiFi or Bluetooth control, simply replace the included slide dimmer with any 120V WiFi or Bluetooth-enabled smart switch. This gives you smartphone app control and voice activation through Amazon Alexa, Apple Siri, or Google Home. The smart switch is not included and must be purchased separately. How Many Relays Do I Need? Each relay is one zone of control. Heaters on the same relay dim and switch together. For independent heater control, use one relay per heater. To group heaters, pair matching-wattage heaters on a single relay (max 9,000W at 240V). Each relay includes its own dimmer slide. Matching Wattage Rule: All heaters on a single relay must have the same wattage. You can pair two 4,000W heaters on one relay (8,000W total), but cannot mix 4,000W and 6,000W heaters on the same relay. What Is Included? The panel comes with 6 dimmer slides (one per relay) and 1 timer. Faceplate for the dimmer and timer is not included. You can swap the included dimmers for any 120V compatible switch of your choice. Universal vs. Solid State vs. Home Management: Choose Universal if you want the flexibility of any 120V dimmer plus optional WiFi/Bluetooth. Choose Solid State for budget-friendly commercial analog control. Choose Home Management for dedicated integration with Lutron, Crestron, Control 4, or Savant automation systems. |
Manufacturer Downloads
- Infratech Control Systems Manual
- Infratech Heater Control Options Brochure
- Infratech Heater Comparison Chart
- Infratech Reference Manual
|
Warranty Information Infratech warrants that this control product is designed and manufactured to be free from defects in materials and workmanship for a period of three (3) years from the original date of purchase. This warranty covers defects in electrical components under normal use. Professional installation by a licensed electrician is required. All custom control panels are built to specification and are final sale. |
Infratech 6 Relay Universal Control Panel | |
|---|---|
| Model Number | 30-4076 |
| Number of Relays | 6 |
| Maximum Wattage Per Relay | 9,000W at 240V / 8,000W at 208V |
| Maximum Heaters Per Relay | 3 |
| Total Panel Capacity (6 Relays) | 54,000W at 240V / 48,000W at 208V |
| Compatible Heaters | All Infratech 208V-480V (C, CD, W, WD, SL, Motif Series) |
| Zone Control | Up to 6 independent zones |
| Dimming | 0-100% variable intensity via 120V dimmer interface |
| WiFi / Bluetooth | Compatible - requires 120V smart switch (sold separately) |
| Voice Control | Amazon Alexa, Apple Siri, Google Home (via smart switch) |
| Included Controls | 6 slide dimmers + 1 timer (faceplate not included) |
| Switch Compatibility | Any standard 120V lighting dimmer or smart switch |
| Enclosure Rating | NEMA 4 - Fully Weatherproof |
| Enclosure Dimensions | 20 in. H x 16 in. W x 7 in. D (exterior) |
| Power Configuration | Single Phase or Three Phase (specify at order) |
| Voltage Compatibility | 208V, 240V, 277V, 480V |
| Certifications | UL 508 Listed |
| Warranty | 3-Year Manufacturer Warranty |
| Made In | USA |
