Zephyr Presrv 24-Inch 5.6 Cu. Ft. Outdoor Rated Beverage Cooler with Locking Door
136 cans behind glass, a full-extension wire rack, and a lock — rated to 115°F.
AuthorizedZephyr Dealer Outdoor & Indoor
Certified 2-Year Parts
& Labor Warranty Quick Ship
Available
The case for a dedicated beverage cooler
If you have ever watched a guest open your outdoor fridge three times looking for a beer, you already understand the argument. A glass door means people find what they want in one motion and the door closes again in two seconds instead of twenty. In an outdoor kitchen, where ambient air can be 100°F, that difference in door-open time is not cosmetic — it is the main thermal load on the cabinet across an afternoon.

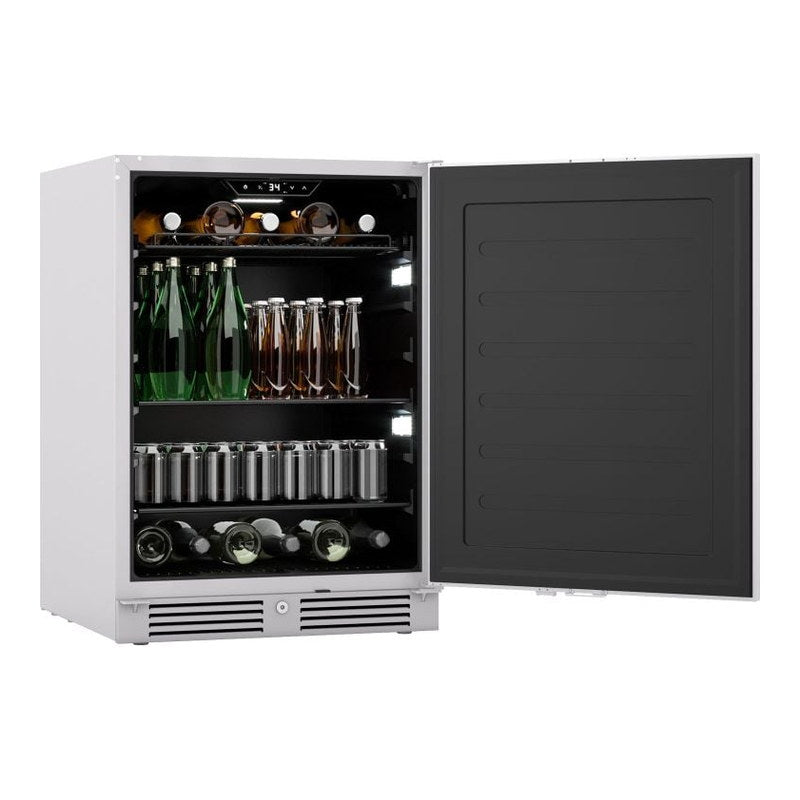

This unit holds 136 standard 12 oz cans and is rated to 115°F ambient in 304-grade stainless steel. It is the highest-capacity model in Zephyr's outdoor Presrv lineup, and at $1,749 it is the least expensive way to get genuinely outdoor-rated refrigeration from this series.
Why the Beverage Cooler Instead of the Outdoor Refrigerator
Zephyr's outdoor refrigerator sits $100 above this unit and looks almost identical from ten feet away. Here is the honest comparison.
- 136 cans versus door shelves. This is the capacity winner by a wide margin. The refrigerator devotes volume to gallon-jug door storage and food shelves; this cooler devotes all of it to beverages. Zephyr illustrates shelf configurations at 24, 42, 42, and 28 cans.

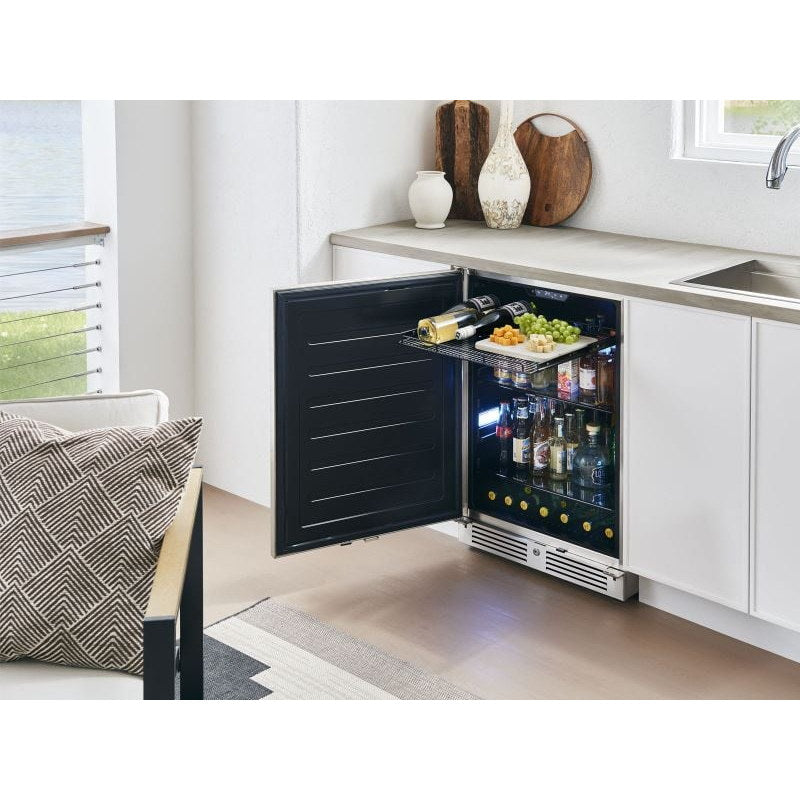

- A full-extension roll-out wire rack. The bottom position is a black wire rack that pulls all the way out, rated to 44 lbs. This solves the real problem with deep under-counter coolers, which is that whatever is at the back is effectively lost. Above it sit two adjustable transparent-gray glass shelves, also rated to 44 lbs each.
- A vibration dampening system the refrigerator does not have. Zephyr fits this model with vibration dampening to reduce compressor noise and, more importantly, the constant micro-vibration that disturbs sediment in wine. If you intend to hold bottles here for more than a few days, that is a meaningful engineering difference.
- A panel-ready door is available. Zephyr offers a solid panel-ready door with kickplate, PRPNLC24AKIT, that lets this cabinet disappear into custom cabinetry. The outdoor refrigerator has no equivalent. If your designer wants an integrated look, this is the model that supports it.
- The trade-off, stated plainly. No gallon jugs, no large platters, and Zephyr does not list ENERGY STAR® certification on this model's spec sheet. Sunlight on a glass door also adds thermal load, so if the unit will face direct afternoon sun, the solid-door refrigerator is the better engineering choice even though it holds fewer drinks.
Cooling, control, and the black interior

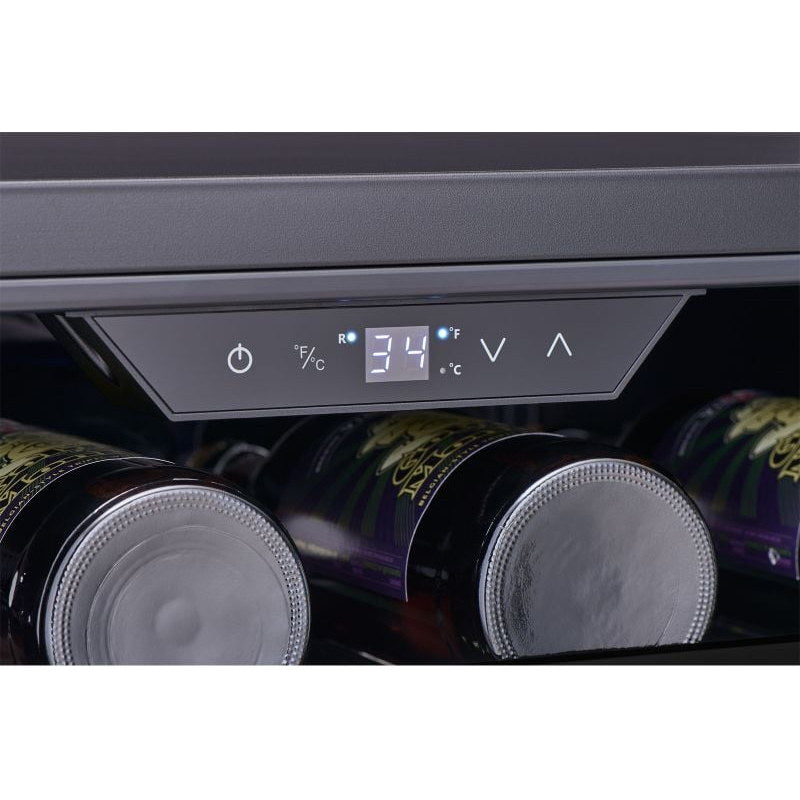

The cabinet runs 34° to 50°F on PreciseTemp™ multi-sensor control with Active Cooling Technology, the same platform as the rest of the Presrv line: multiple sensors rather than one thermostat, and a computer-driven fan that evens out cabinet temperature and speeds recovery after the door opens. Sound level is 39 dBA.

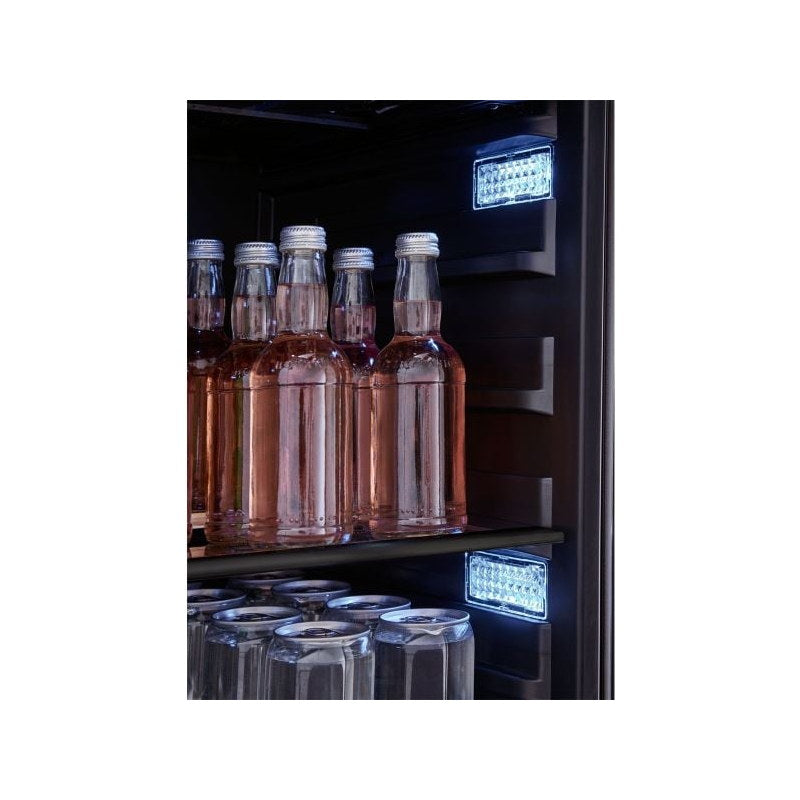

The interior is black, and Cloud White LED lighting runs against it. This combination is deliberate — behind glass, a black interior recedes and the lit contents become the visual subject. It is why the cabinet looks like a bar display rather than a refrigerator.
The door locks with a child safety lock and keys, the door open alarm sounds after three minutes, the hinge is field reversible, and the hinges are zero-clearance for flush cabinet runs. Air filtration runs through a replaceable carbon filter, part number Z0F-C004.
What's Included
- Zephyr Presrv 24-inch outdoor rated beverage cooler, model PRB24C01AS-OD
- One full-extension black wire rack
- Two adjustable transparent-gray glass shelves
- Pro-style stainless steel door handle
- Child safety lock with keys
- Field-reversible door hinge bracket and hardware
- Carbon air filter, installed
- Leveling legs, installed
- Use, care and installation guide
Not included: casters (PRCAST-C001), solid panel-ready door kit (PRPNLC24AKIT), additional glass shelf (50150025), adjustable drink caddy (PRDC-C03), or alternate handle finishes in brushed gold and matte black.
Installation
- Confirm the opening. The cabinet is 23-7/8" W x 33-7/8" H x 23-1/2" D, with leveling legs giving 33-7/8" to 34-7/8" of height adjustment. Plan a nominal 24" x 34" cutout.
- Account for door swing depth. With the door open to its 135° maximum, total depth reaches 46-1/2". Check that against your walkway before committing to a location.
- Provide power. Standard 115/120V AC grounded outlet, 1.5A maximum draw. Outdoor installations require GFCI protection and a weather-rated receptacle. Hire a licensed electrician if this circuit does not already exist.
- Keep the front kickplate vent clear. The unit is front-vented. Do not trim over the grille or fit a tight decorative panel across it.
- Allow 2-1/4" minimum rear clearance.
- Set the hinge direction before installing. Reversing the door in place is possible but far harder than doing it on the floor.
- Level the cabinet in both axes using the adjustable feet, then let it stand upright four hours before first power-on.
What you should plan to hire out: electrical work, and cabinetry or masonry to create the opening. At 97 lbs this is a two-person lift, not a crane job.
MODEL & CONSTRUCTION | |
| Model Number | PRB24C01AS-OD |
| Series | Zephyr Presrv™ |
| Nominal Width | 24" |
| Overall Dimensions (W x H x D) | 23-7/8" W x 33-7/8" H x 23-1/2" D |
| Adjustable Height Range | 33-7/8" – 34-7/8" on leveling legs |
| Height on Optional Casters | 37-1/4" |
| Depth with Door Open (max 135°) | 46-1/2" |
| Weight | 97 lbs. |
| Installation Type | Built-in or freestanding, compact |
| Outdoor / Indoor Certified | Yes — certified for both |
| Door Finish | 304-grade stainless steel |
| Cabinet Finish | 304-grade stainless steel |
| Interior Finish | Black |
| Field-Reversible Door | Yes |
| Zero-Clearance Door Hinges | Yes |
CAPACITY & COOLING PERFORMANCE | |
| Beverage Capacity | 136 standard 12 oz cans |
| Total Volume | 5.6 cu. ft. |
| Temperature Range | 34° – 50° F |
| Ambient Operating Range | 50° – 115° F |
| Refrigerant Type | R600a |
| Sound Level | 39 dBA |
| PreciseTemp™ Multi-Sensor Control | Yes |
| Active Cooling Technology | Yes — on-board computer drives an active cooling fan |
| Vibration Dampening System | Yes — reduces noise and vibration to minimize disturbance |
| Air Filtration | Yes, with carbon filter |
STORAGE CONFIGURATION | |
| Wire Shelving | 1 full-extension black wire rack |
| Beverage Shelving | 2 adjustable, transparent-gray glass shelves |
| Shelf Weight Capacity — Glass | 44 lbs. |
| Shelf Weight Capacity — Roll-Out Wire | 44 lbs. |
| Shelf Capacity (per manufacturer examples) | Configurations illustrated at 24 / 42 / 42 / 28 standard 12 oz cans |
CONTROLS, LIGHTING & SECURITY | |
| Controls | Electronic capacitive touch |
| LED Lighting | Cloud White |
| Door Open Alarm | Yes, after 3 minutes |
| Door Lock | Yes — child safety lock with keys |
| Sabbath Mode | Yes |
ELECTRICAL & UTILITIES | |
| Power Supply | 115V, 60Hz |
| Maximum Amperage | 1.5A |
| Outlet Required | Standard 115/120V AC grounded outlet |
| Venting | Front-vented — no side or rear clearance required for airflow |
| Minimum Rear Wall Clearance | 2-1/4" |
OPTIONAL ACCESSORIES | |
| Contemporary Handle | PRHAN-C101 (stainless), PRHAN-C102 (brushed gold), PRHAN-C104 (matte black) |
| Pro Handle | PRHAN-C003 (brushed gold), PRHAN-C004 (matte black) |
| Casters (adds 3-3/8" height) | PRCAST-C001, set of 4 |
| Solid Panel-Ready Door with Kickplate | PRPNLC24AKIT |
| Additional Glass Shelf | 50150025 |
| Adjustable Drink Caddy | PRDC-C03 |
| Replacement Carbon Filter | Z0F-C004 |
MANUFACTURER | |
| Manufacturer | Zephyr |
| Product Line | Presrv™ |
| Headquarters | 2277 Harbor Bay Parkway, Alameda, CA 94502 |
| Manufacturer Support | 888.880.8368 |
| Dealer Status | BBQ Kitchen Pros is an authorized Zephyr dealer |
| Warranty Registration | zephyronline.com |
DOCUMENTATION & RESOURCES | |
| Specification Sheet | View PDF |
| Use, Care & Installation Manual | View PDF |
| Exploded View Parts Diagram | View PDF |
| Adjustable Shelf Manual | View PDF |
| Panel-Ready Door Specification Sheet | View PDF |
| Panel-Ready Door Manual | View PDF |
Warranty
Zephyr backs the Presrv™ line with two years of parts coverage, two years of labor coverage, and five years on the sealed compressor. That labor term is the part worth reading twice. Plenty of premium refrigeration carries two years on parts but only one year on labor, which means that in year two you are paying a technician's call-out and hourly rate to install a part the manufacturer sends free. Zephyr covers both for the full two years. The five-year compressor term covers the single most expensive component in the cabinet.
Two conditions matter for outdoor installations. Coverage assumes the unit is operated inside its rated ambient range, and it assumes installation follows the clearance and venting requirements in the manual. Running an outdoor-rated cabinet below its minimum ambient temperature, or burying a front-vented unit in a sealed enclosure, are the two most common ways owners create a problem the warranty will not cover. Both are avoidable at the design stage.
About Zephyr
Zephyr has been designing kitchen ventilation and refrigeration for more than 25 years from its base at 2277 Harbor Bay Parkway in Alameda, California. The Presrv™ line is the company's refrigeration platform, built around three shared technologies: PreciseTemp™, which uses multiple internal sensors rather than a single thermostat; Active Cooling Technology, where an on-board computer drives cooling fans to even out temperature across the cabinet; and 304-grade stainless steel construction on every outdoor-rated model.
BBQ Kitchen Pros is an authorized Zephyr dealer. Every unit ships new in the manufacturer's packaging with full factory warranty registered to you, and Zephyr's technical support line is available directly at 888.880.8368 for product registration and service.
