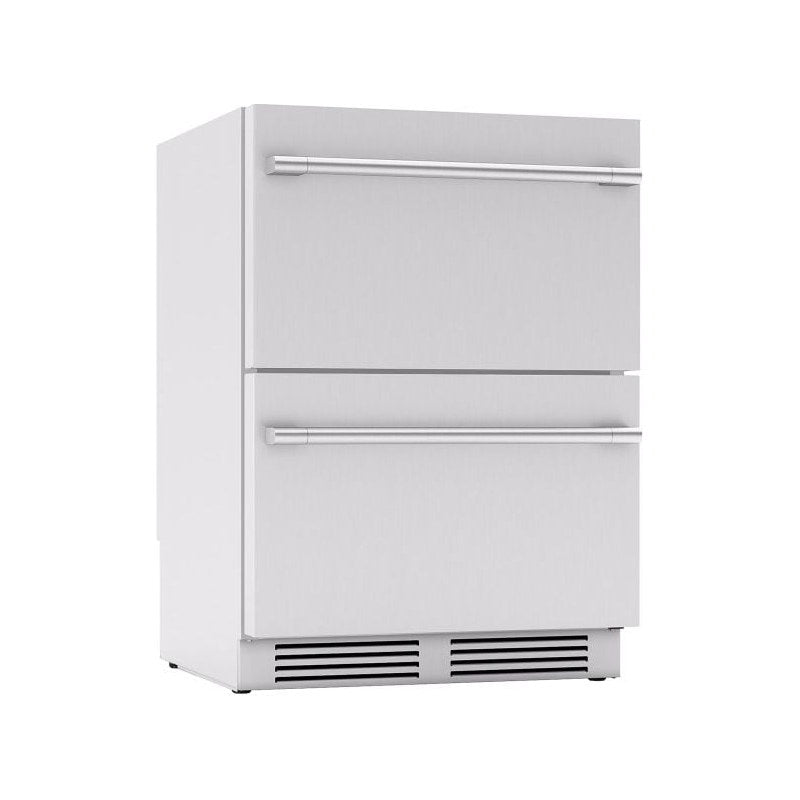

Zephyr Presrv 24-Inch 5.1 Cu. Ft. Outdoor Rated Dual Drawer Compact Stainless Steel Refrigerator
- Description
- Specs & Dimensions
- Shipping & Delivery
- Easy Returns
Zephyr Presrv 24-Inch 5.1 Cu. Ft. Outdoor Rated Dual Drawer Compact Stainless Steel Refrigerator
Two independent zones from 33° to 65°F, in a cabinet you never have to bend down and reach into.
AuthorizedZephyr Dealer Outdoor & Indoor
Certified 2-Year Parts
& Labor Warranty Quick Ship
Available
Why drawers, and why two zones
An under-counter door fridge has one flaw that never goes away: to reach the back, you crouch and reach in blind. In an outdoor kitchen, where the unit is often flanked by a grill on one side and a sink on the other, there is frequently not even room to swing the door fully open. Drawers eliminate both problems. Both drawers here are full-extension and soft-close — the entire contents come to you, and the drawer never slams shut and tips a bottle over.

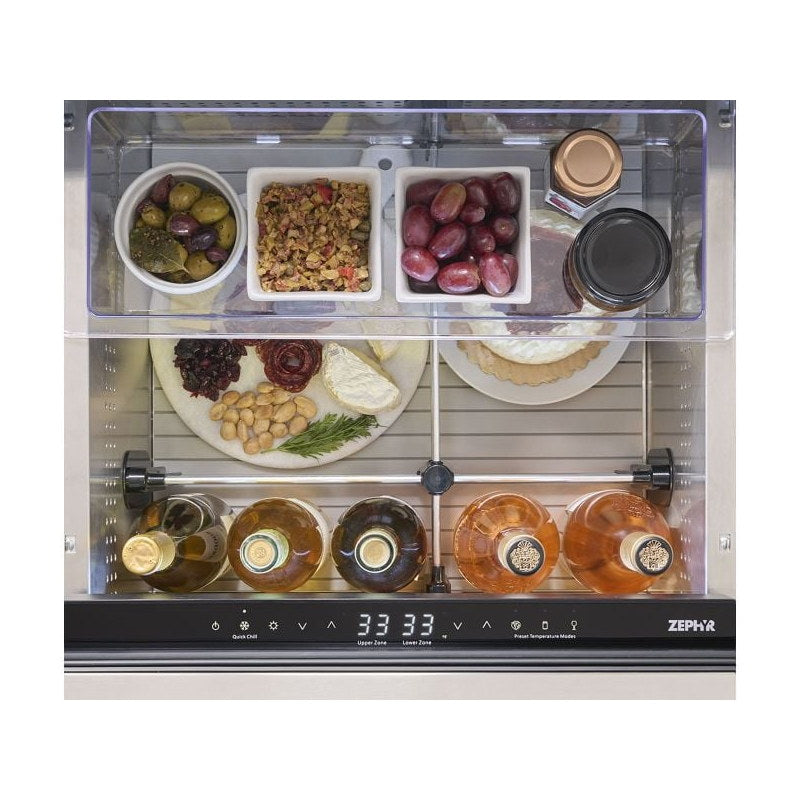

The second argument is temperature. This unit runs two genuinely independent zones, each adjustable from 33° to 65°F, on dual evaporators. That last detail is what separates this from most "dual zone" refrigeration, where a single evaporator is damper-controlled and the two zones drag each other around. Two evaporators means the upper drawer can genuinely hold produce at 34°F while the lower holds red wine at 60°F, and neither compromises the other.
Why Drawers Instead of the Door-Style Outdoor Refrigerator
- Access without crouching. Full-extension slides bring everything into reach from standing height. This is the whole reason the category exists, and it is worth the $1,250 premium over the door-style refrigerator for anyone who cooks outdoors regularly.
- Two zones from 33° to 65°F versus one zone at 34° to 50°F. The drawer unit's range is both wider and split. 65°F at the top of the range covers red wine serving temperature, which the door-style refrigerator simply cannot reach.

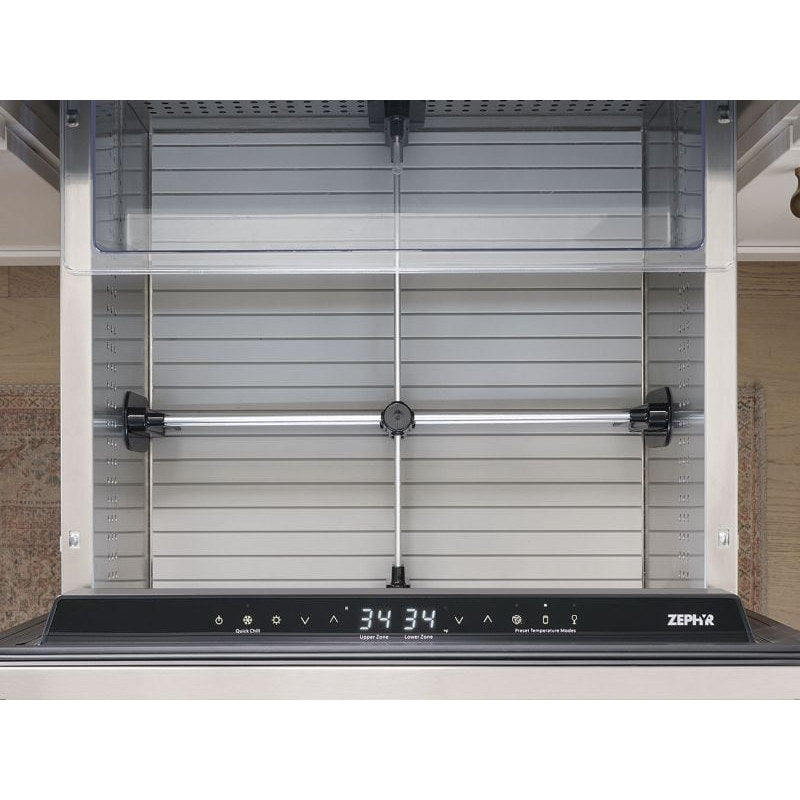

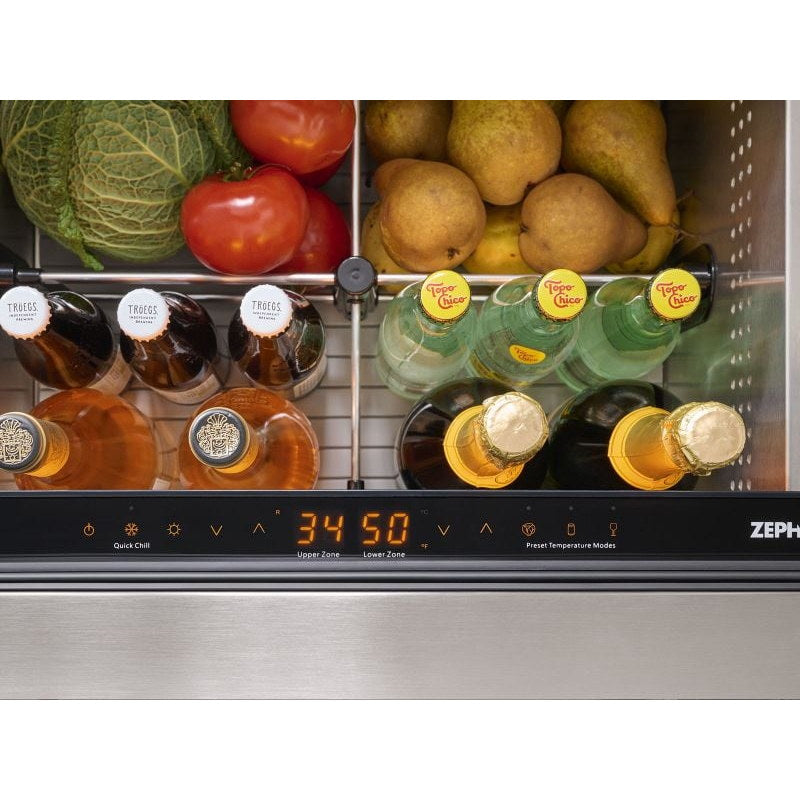

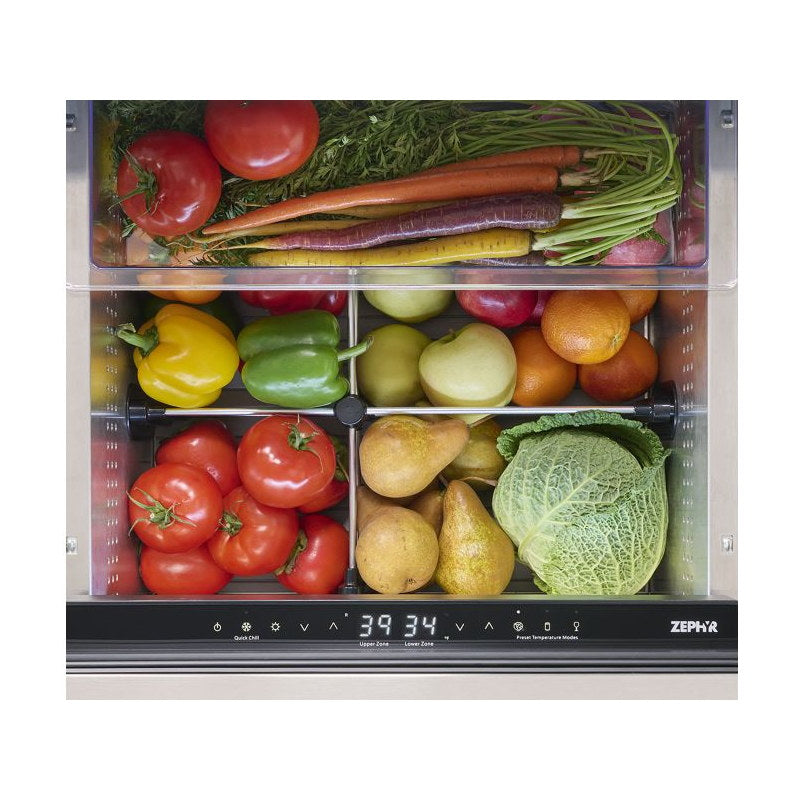

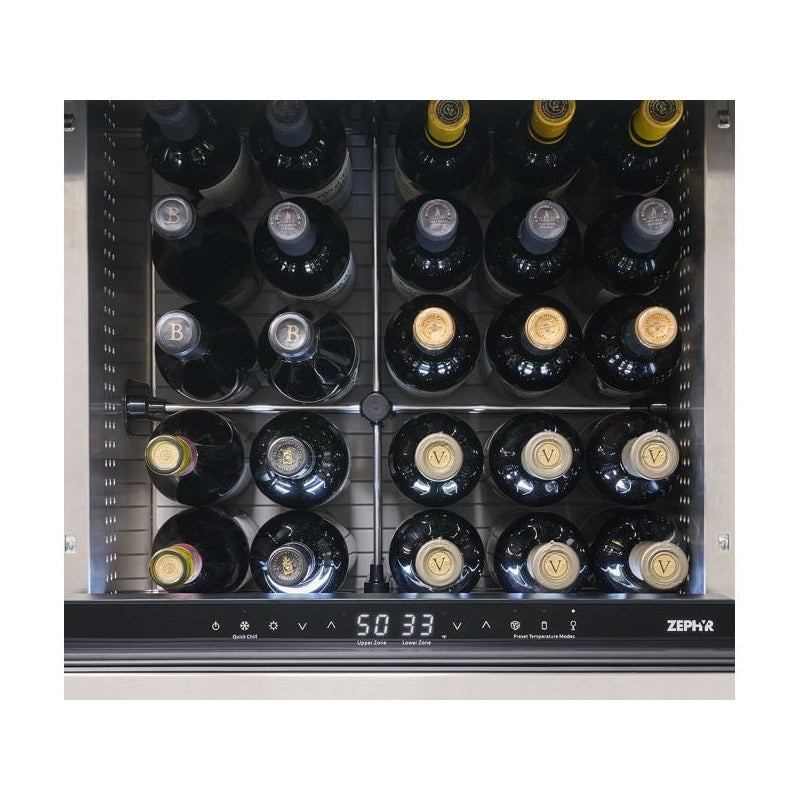

- Preset modes and Quick Chill. Three presets — Produce, Beverage, Wine — set each zone without you looking up target temperatures. Quick Chill drops the cabinet fast when you load warm drinks an hour before guests arrive. Neither feature exists on the door models.

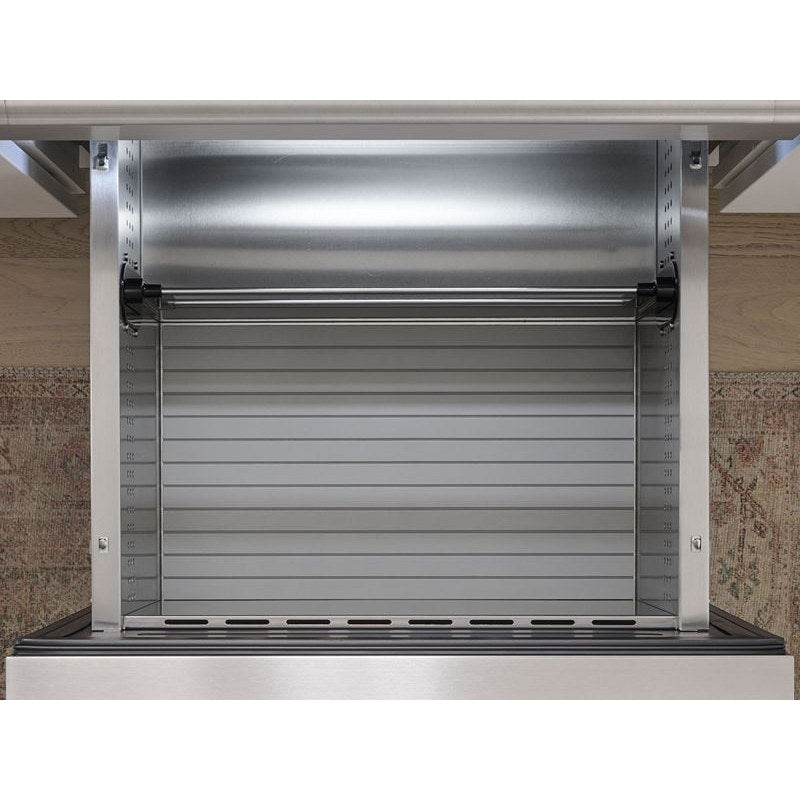

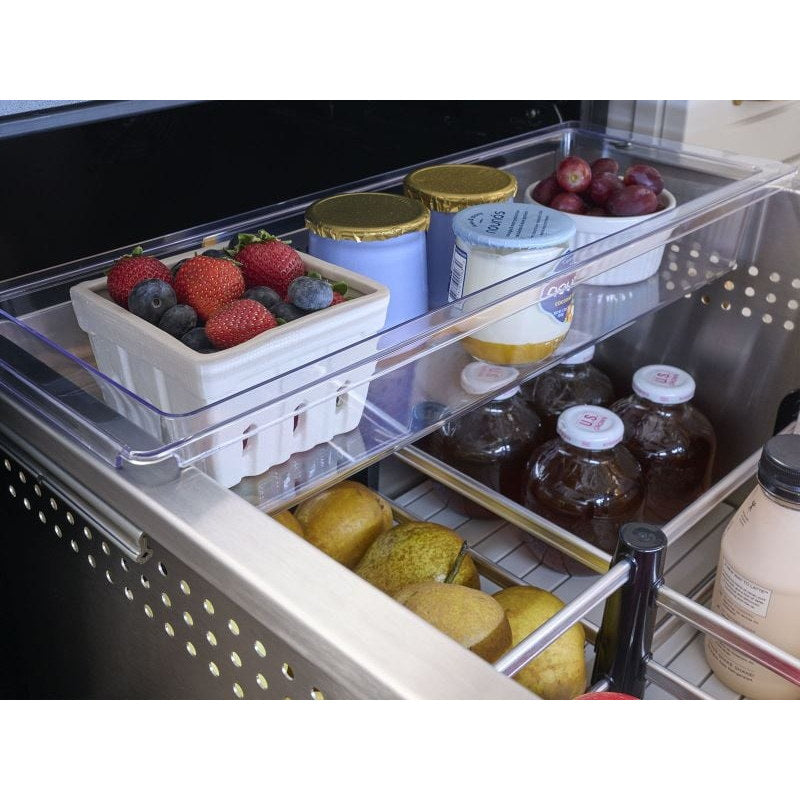

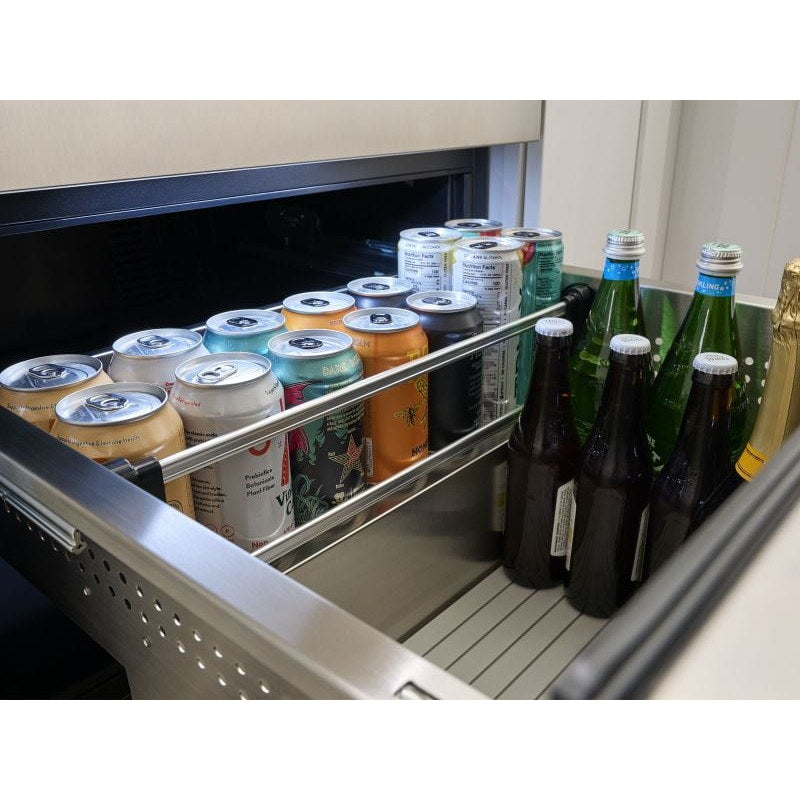

- Adjustable organization instead of fixed shelves. Bar dividers slide left, right, front and back; a transparent tray sits above; removable silicone mats line both drawers so bottles do not slide and cleanup is a rinse rather than a scrub.

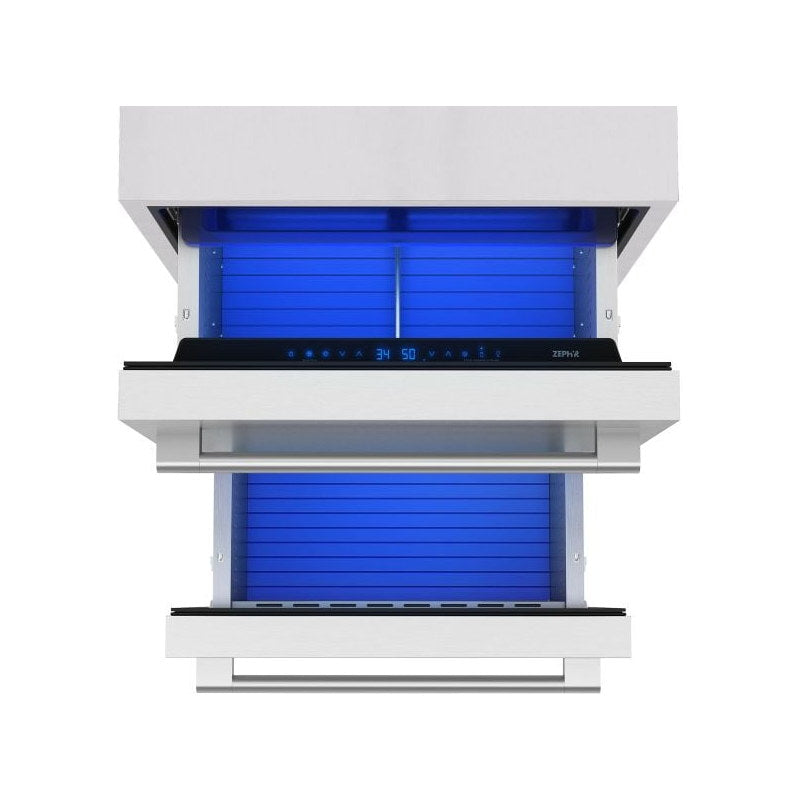

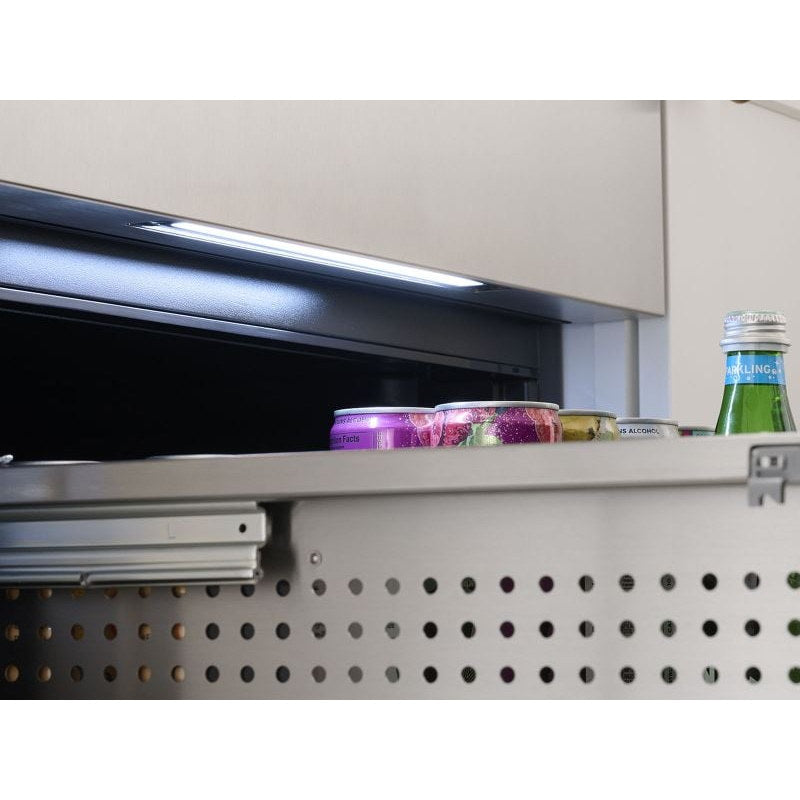

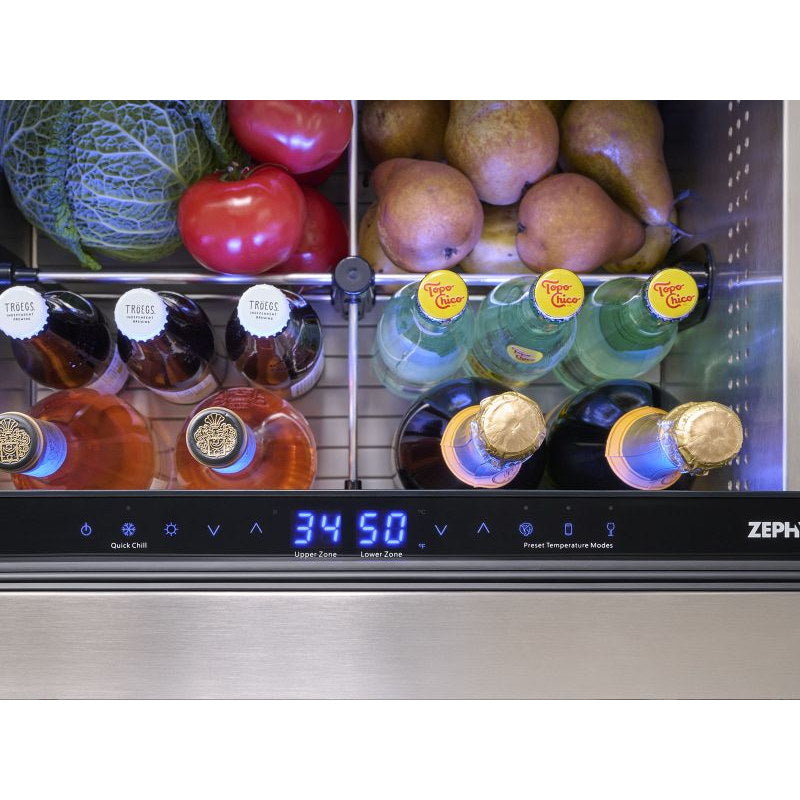

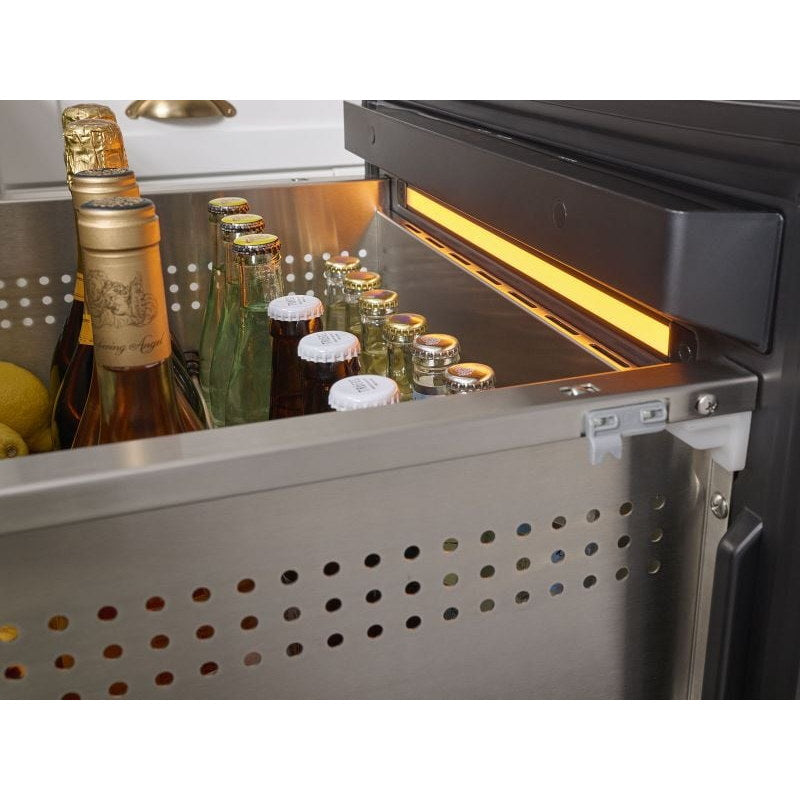

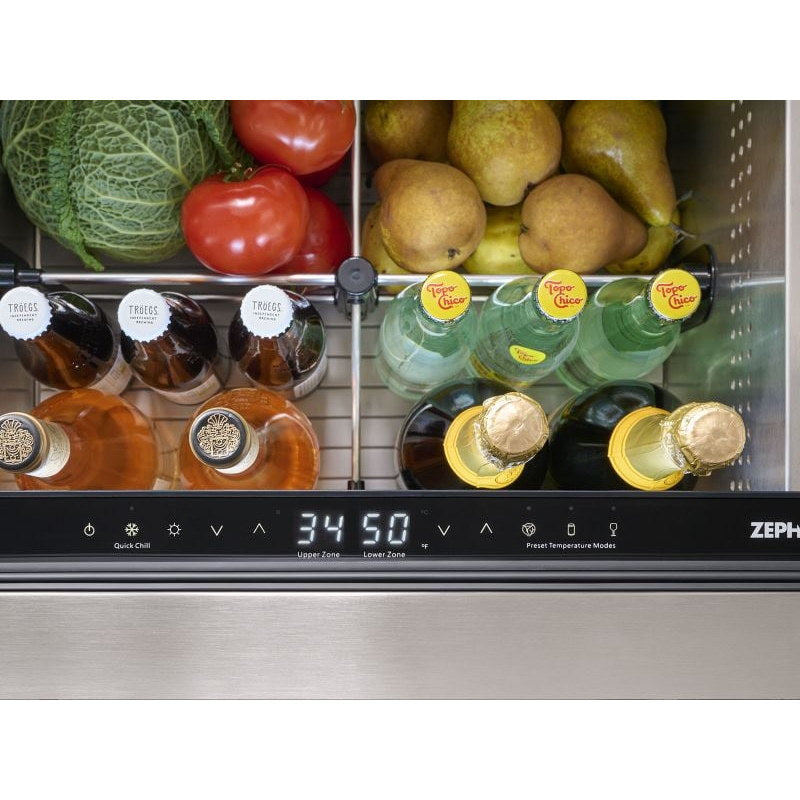

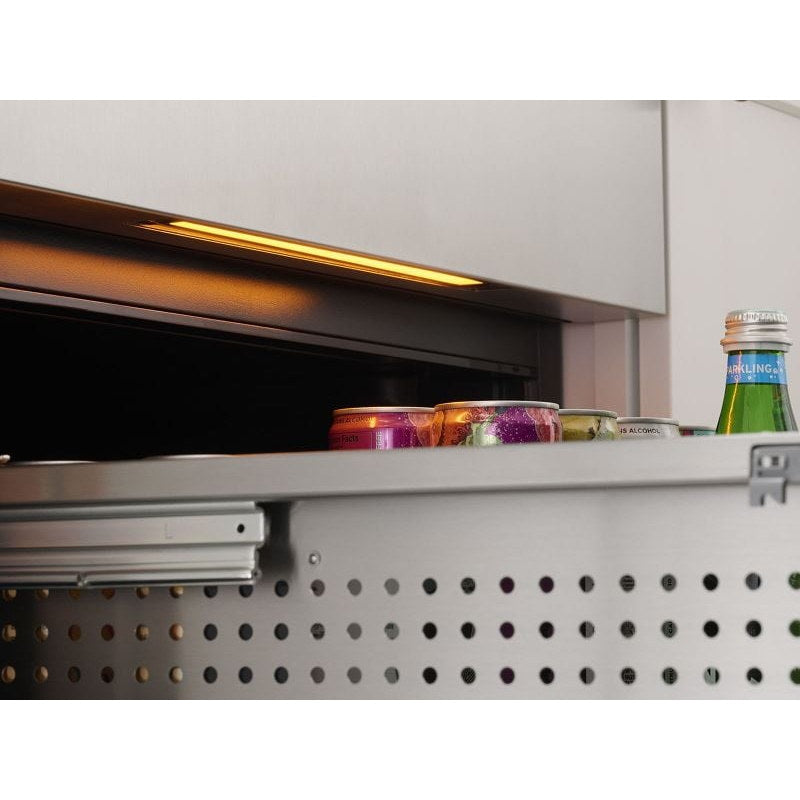

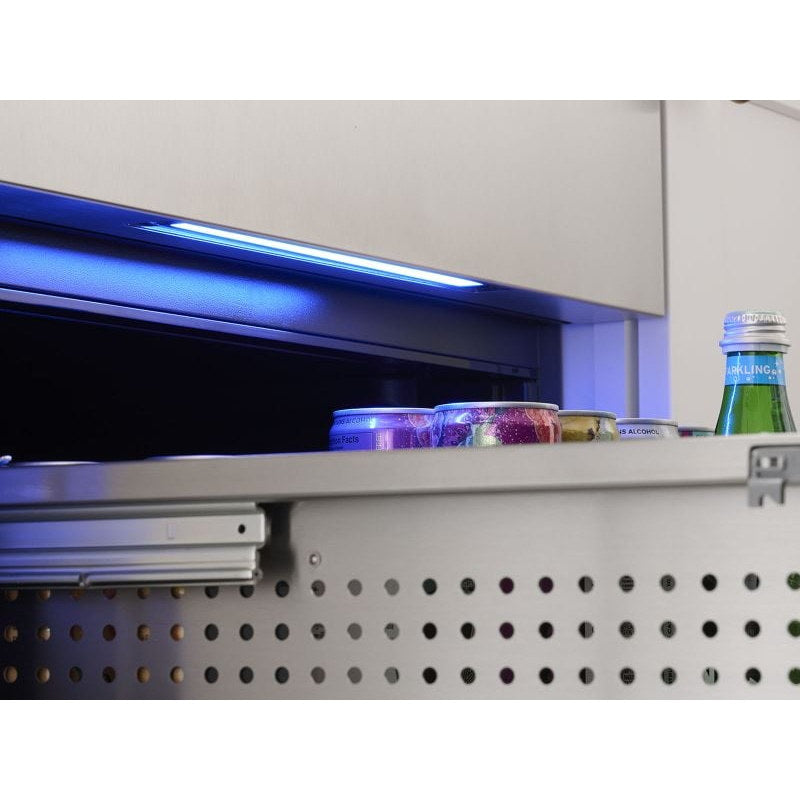

- Three-color LED and a matching control display. Cloud White, Deep Blue, and Amber. This sounds cosmetic and mostly is — but the amber setting is genuinely easier on night vision at an outdoor bar, and the control display matches the selected color.
- The real trade-offs. Capacity drops to 5.1 cu. ft. Maximum clearance height inside the drawers is 12", so tall bottles must lie down. It weighs 139 lbs. And most importantly, Zephyr rates this model built-in only — unlike the door-style units, it is not rated to stand freestanding.
The 12-inch drawer height, stated plainly
This is the specification most likely to surprise you after delivery, so it is worth being direct about. The maximum interior clearance in each drawer is 12 inches. A standard 750ml wine bottle is roughly 12 inches tall and will not stand upright with the drawer closing reliably. Zephyr's answer is the adjustable bar dividers, which are designed to hold bottles lying down — which is correct wine storage anyway, keeping the cork wet. But if your mental picture is standing bottles up in a drawer, adjust it now. Champagne and magnum formats will not fit at all.

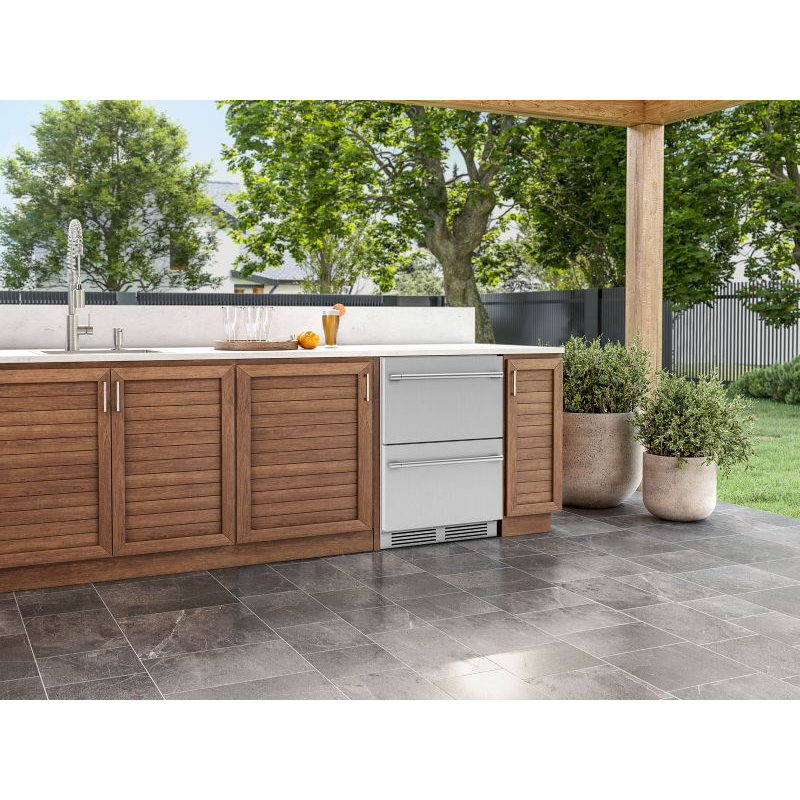

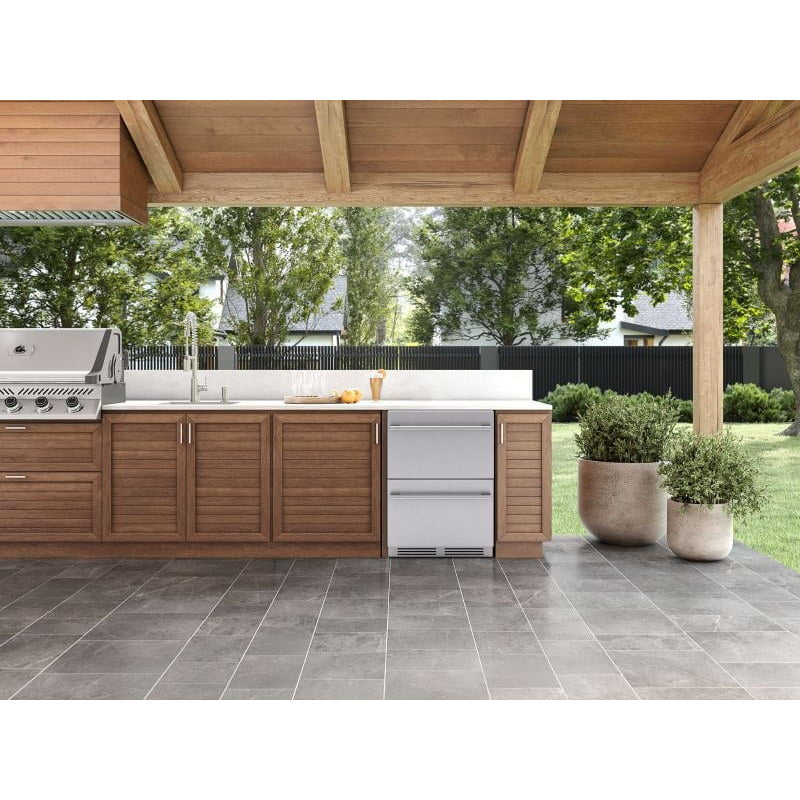

Built for outdoors, specifically
Rated to 115°F ambient with a full 304-grade stainless exterior and a stainless drawer interior. At 38 dBA it is the quietest unit in this lineup. It is ENERGY STAR® certified, runs R600a refrigerant, and carries a door open alarm and Sabbath mode. PreciseTemp™ multi-sensor control and Active Cooling Technology — here driving fans in both zones — are the same platform as the rest of the Presrv line.
What's Included

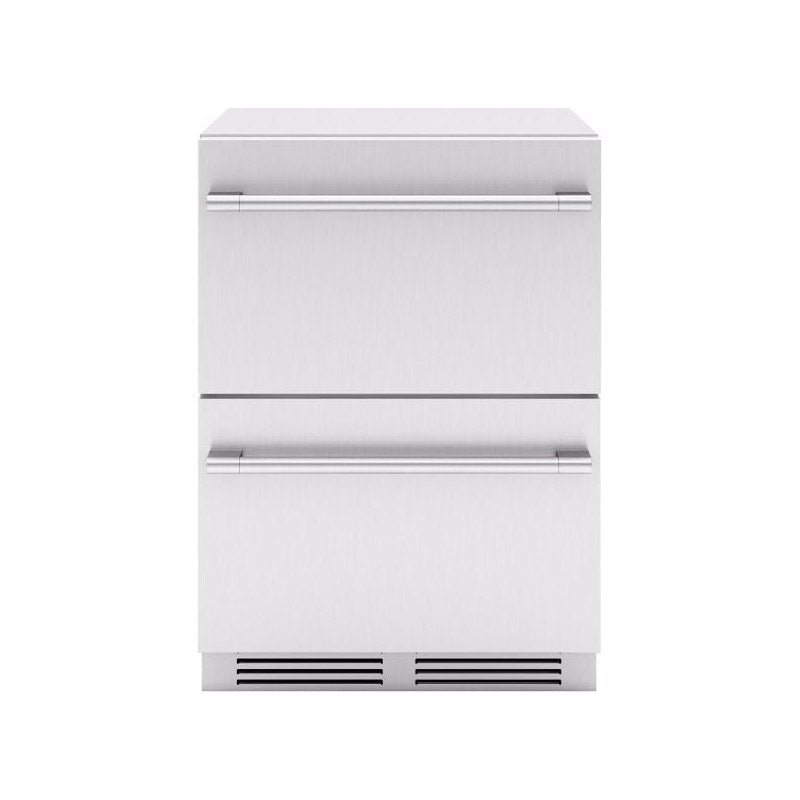

- Zephyr Presrv 24-inch outdoor rated dual drawer refrigerator, model PRRD24C2AS-OD
- Two full-extension, soft-close stainless steel drawers

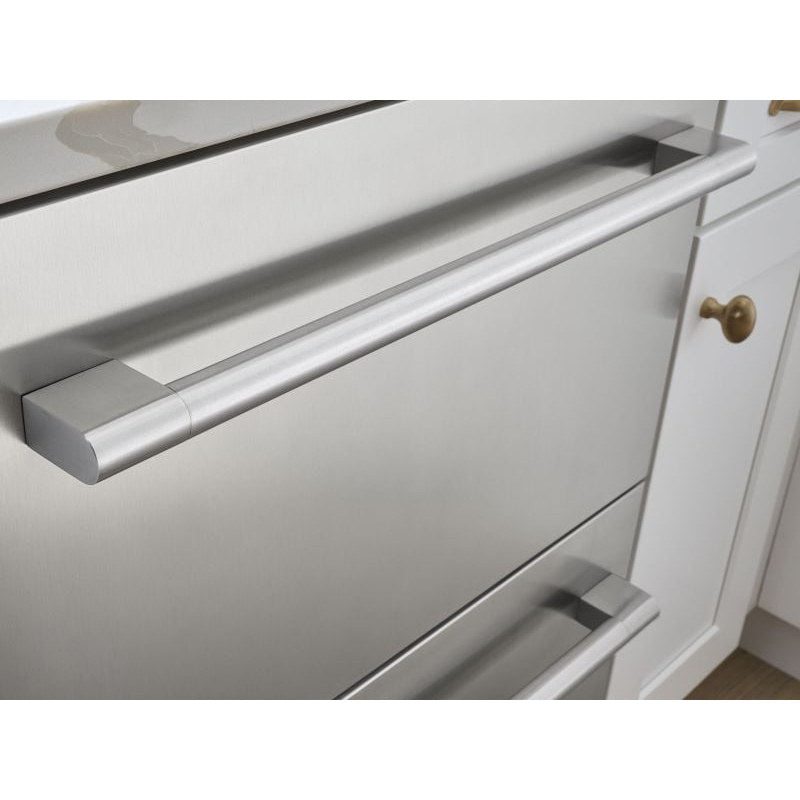

- Pro handles, installed
- Adjustable bar dividers for both drawers
- Transparent drawer tray
- Removable silicone drawer mats, both drawers
- Use, care and installation guide
Not included: drawer pan kit (DRPAN241S) or contemporary handle kit (PRHAN-C201, includes two handles). Note that PRHAN-C201 is the correct handle kit for this model; Zephyr specifically states the PRRD24C2AP panel-ready handles are not compatible with PRRD24C2AS-OD.
Installation
- This unit is built-in only. Zephyr rates the installation type as compact / built-in. Unlike the door-style Presrv models it is not rated to stand freestanding, so your design must include a finished opening.
- Confirm the opening. The cabinet is 23-7/8" W x 33-7/8" H x 24" D, adjustable from 33-7/8" to 34-7/8" in height. Note the depth — at 24" it is the deepest unit in this lineup.
- Allow drawer travel in front. Full-extension drawers need unobstructed space ahead of the cabinet. Confirm the run of your island does not put a post, planter, or seating directly in the extension path.
- Provide power. Standard 115/120V AC grounded outlet, 1.5A maximum. Outdoor code requires GFCI protection and a weather-rated receptacle. Hire a licensed electrician for new circuit work.
- Keep the front vent clear. Front-vented, like the rest of the line. Do not cover the grille with trim.
- Level the cabinet before securing it. Drawer slides and soft-close mechanisms both depend on the cabinet sitting square; an out-of-level installation will make the drawers drift open or fail to latch.
- Let it stand upright four hours before first power-on.
What you should plan to hire out: electrical, and the cabinetry or masonry opening. At 139 lbs this is the heaviest unit in the lineup and a genuine two-person lift — plan for help on delivery day.
MODEL & CONSTRUCTION | |
| Model Number | PRRD24C2AS-OD |
| Series | Zephyr Presrv™ |
| Nominal Width | 24" |
| Overall Dimensions (W x H x D) | 23-7/8" W x 33-7/8" H x 24" D |
| Adjustable Height Range | 33-7/8" – 34-7/8" |
| Weight | 139 lbs. |
| Installation Type | Built-in, compact — not rated for freestanding installation |
| Outdoor / Indoor Certified | Yes — certified for both |
| Exterior Drawer Finish | 304-grade stainless steel with pro handles |
| Interior Drawer Finish | Stainless steel |
| Exterior Cabinet Finish | 304-grade stainless steel |
| Interior Cabinet Finish | Black |
CAPACITY & COOLING PERFORMANCE | |
| Total Volume | 5.1 cu. ft. |
| Temperature Range | 33° – 65° F (each zone, independently) |
| Ambient Operating Range | 50° – 115° F |
| Refrigerant Type | R600a |
| Sound Level | 38 dBA |
| Dual Evaporators | Yes — one per zone |
| Preset Temperature Modes | Produce, Beverage, Wine |
| Quick Chill | Yes — instantly lowers overall temperature |
| PreciseTemp™ Multi-Sensor Control | Yes |
| Active Cooling Technology | Yes — on-board computer drives active cooling fans |
| ENERGY STAR® Certified | Yes |
STORAGE CONFIGURATION | |
| Full-Extension Drawers | Yes, both drawers |
| Soft-Close Drawers | Yes, both drawers |
| Maximum Clearance Height Inside Drawers | 12" |
| Drawer Organization | Adjustable bar dividers plus transparent drawer tray |
| Removable Silicone Drawer Mats | Yes |
| Bottle Storage | Adjustable organizers accept wine or beer bottles in either drawer |
CONTROLS, LIGHTING & SECURITY | |
| Controls | 3-color electronic touch |
| LED Lighting | 3-color — Cloud White, Deep Blue, Amber |
| Door Open Alarm | Yes |
| Sabbath Mode | Yes |
ELECTRICAL & UTILITIES | |
| Power Supply | 115V, 60Hz |
| Maximum Amperage | 1.5A |
| Outlet Required | Standard 115/120V AC grounded outlet |
| Venting | Front-vented |
OPTIONAL ACCESSORIES | |
| Drawer Pan Kit | DRPAN241S |
| Contemporary Handle Kit (includes 2 handles) | PRHAN-C201, stainless steel |
MANUFACTURER | |
| Manufacturer | Zephyr |
| Product Line | Presrv™ |
| Headquarters | 2277 Harbor Bay Parkway, Alameda, CA 94502 |
| Manufacturer Support | 888.880.8368 |
| Dealer Status | BBQ Kitchen Pros is an authorized Zephyr dealer |
| Warranty Registration | zephyronline.com |
DOCUMENTATION & RESOURCES | |
| Specification Sheet | View PDF |
| Use, Care & Installation Manual | View PDF |
| Exploded View Parts Diagram | View PDF |
| Drawer Pan Kit Diagram | View PDF |
Warranty
Zephyr backs the Presrv™ line with two years of parts coverage, two years of labor coverage, and five years on the sealed compressor. That labor term is the part worth reading twice. Plenty of premium refrigeration carries two years on parts but only one year on labor, which means that in year two you are paying a technician's call-out and hourly rate to install a part the manufacturer sends free. Zephyr covers both for the full two years. The five-year compressor term covers the single most expensive component in the cabinet.
Two conditions matter for outdoor installations. Coverage assumes the unit is operated inside its rated ambient range, and it assumes installation follows the clearance and venting requirements in the manual. Running an outdoor-rated cabinet below its minimum ambient temperature, or burying a front-vented unit in a sealed enclosure, are the two most common ways owners create a problem the warranty will not cover. Both are avoidable at the design stage.
About Zephyr
Zephyr has been designing kitchen ventilation and refrigeration for more than 25 years from its base at 2277 Harbor Bay Parkway in Alameda, California. The Presrv™ line is the company's refrigeration platform, built around three shared technologies: PreciseTemp™, which uses multiple internal sensors rather than a single thermostat; Active Cooling Technology, where an on-board computer drives cooling fans to even out temperature across the cabinet; and 304-grade stainless steel construction on every outdoor-rated model.
BBQ Kitchen Pros is an authorized Zephyr dealer. Every unit ships new in the manufacturer's packaging with full factory warranty registered to you, and Zephyr's technical support line is available directly at 888.880.8368 for product registration and service.
