Summit 24-Inch 4.72 Cu. Ft. Outdoor Panel-Ready All-Freezer with Icemaker - SPFF51OSIFIM
- Description
- Specs & Dimensions
- Shipping & Delivery
- Easy Returns
Summit 24-Inch 4.72 Cu. Ft. Outdoor Panel-Ready All-Freezer with Icemaker - SPFF51OSIFIM
The panel-ready SPFF51OSIF with a factory icemaker: a freezer that hides behind a cabinet panel and makes its own ice. Model SPFF51OSIFIM.
AuthorizedSummit Dealer Panel-Ready
Integrated Frame Factory
Icemaker Frost-Free
True No-Frost

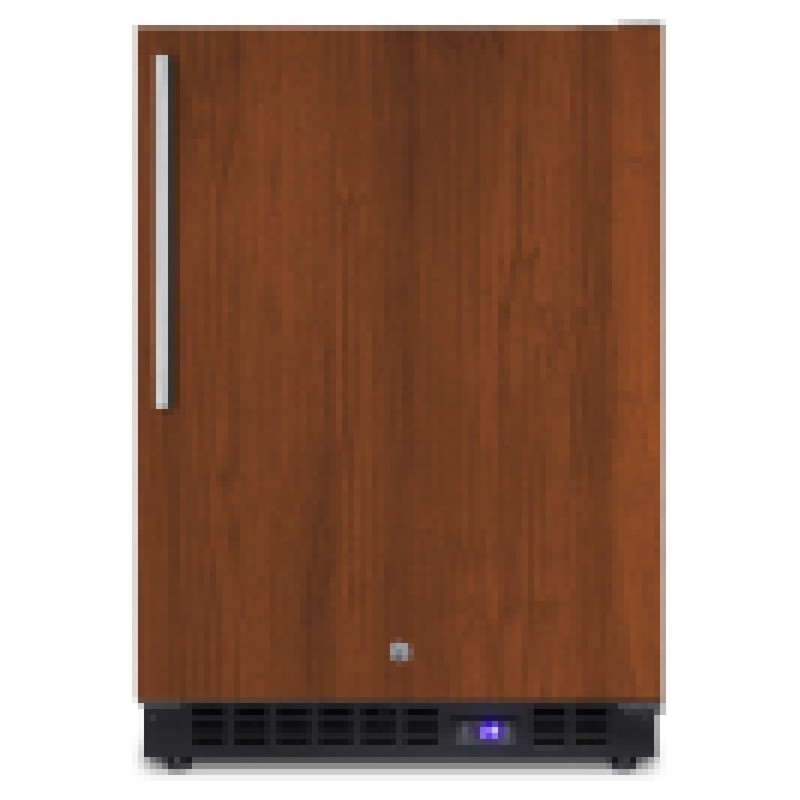

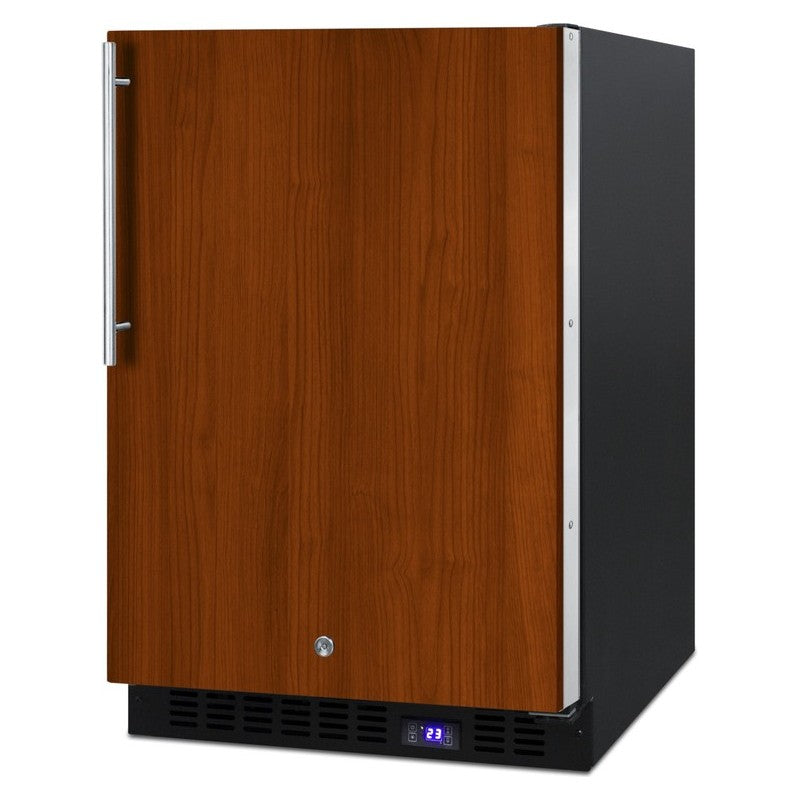

Hidden Behind a Panel, With Ice Inside
The SPFF51OSIFIM pairs the integrated panel-ready door frame (overlay panel 23 1/2" W × 30" H, at least 3/4" thick, 10 lbs maximum, customer-supplied handle) with a factory-installed icemaker. Same 34" × 23.63" × 23.5" cabinet with 4.72 cu. ft., fully finished black cabinet, front-breathing, weatherproof construction for built-in or freestanding outdoor use. The icemaker needs a water line.

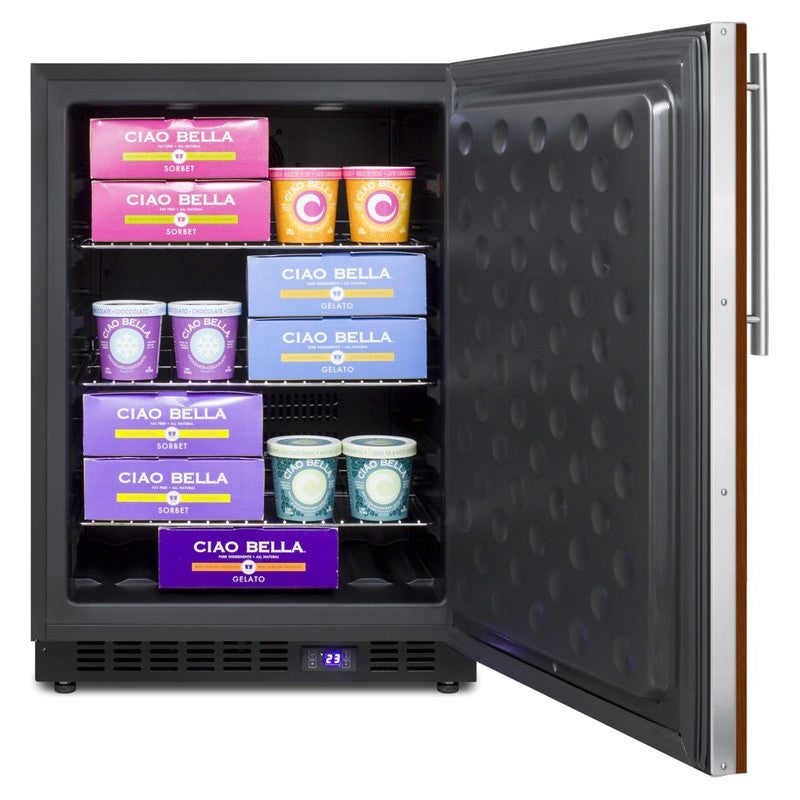

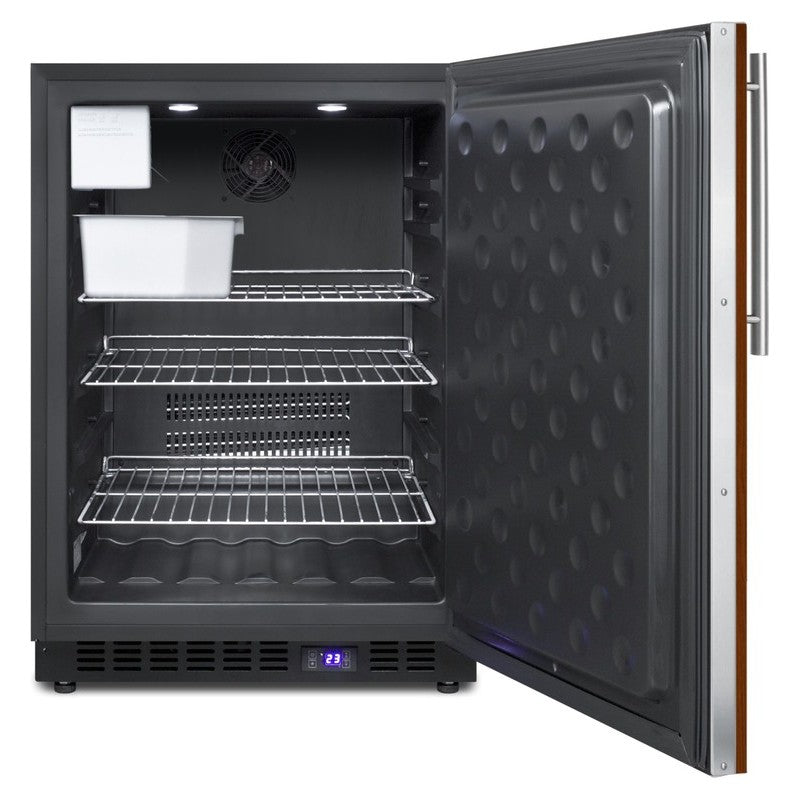

Inside: three adjustable chrome shelves, a recessed LED light, and a digital thermostat with a -11 to 11°F range. True frost-free operation with interior and exterior fans. Sabbath mode. The door ships right-hinge and is factory reversible. Rated 390 kWh/year, 2.0 amps, 88 lbs.
Why the SPFF51OSIFIM Instead of the SPFF51OSIF
- Factory icemaker added to the panel-ready freezer.
- Same integrated frame, same panel spec, same 24" footprint and frost-free system.
- The trade-offs, stated plainly. Panel and handle are not included. Needs a water line run to the cutout, and the ice bin takes shelf space. Door is factory reversible only. No lock listed. Summit does not list an NSF-7 sanitation line on this model. No Energy Star listing. All-freezer: no refrigerator section.
What's Included
- SPFF51OSIFIM freezer with integrated stainless steel door frame and black cabinet
- Factory-installed icemaker
- 3 adjustable chrome shelves
- User manual, integrated frame instructions and icemaker quick-start guide
Installation
- Built-in under a 34" counter in a 24" cutout, or freestanding; front-breathing, no side clearance needed.
- Cabinet depth 23.5" before the panel. Total depth with the door open 90° is 45.63".
- Mount your panel (23 1/2" W × 30" H, at least 3/4" thick, 10 lbs maximum) to the integrated frame and attach your handle; see the integrated frame instructions below.
- Run a cold-water supply with a shutoff to the cutout before setting the unit; see the icemaker quick-start guide below.
- Plug into a dedicated 115V/15A outlet. Outdoors that outlet must be GFCI-protected. If the unit was transported on its side, stand it upright for 2 hours before plugging in.
FREEZER SPECIFICATIONS | |
| Model | SPFF51OSIFIM |
| Type | Outdoor built-in / freestanding all-freezer |
| Capacity | 4.72 cu. ft. (134 L) |
| Temperature Range | -11 to 11°F |
| Defrost | Frost-free |
| Thermostat | Digital |
| Fan | Interior and exterior |
| Door / Cabinet | Panel-ready integrated stainless frame / black |
| Shelves | 3 adjustable chrome |
| Lighting | Recessed LED |
| Icemaker | Factory-installed; water line required |
| Door Swing | Right-hinge as shipped (RHD); factory reversible only — order LHD option for left-hinge |
| Panel Spec | 23 1/2" W × 30" H, ≥3/4" thick, 10 lbs maximum; handle customer-supplied |
| Sabbath Mode | Yes |
| Sanitation | Not listed by Summit |
| Electrical Safety | ETL / ETL-C |
| Refrigerant | R600a, 1.24 oz |
| UPC | 761101050003 |
DIMENSIONS & UTILITIES | |
| Height of Cabinet | 34.0" (86 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth, Door Open 90° | 45.63" (116 cm) |
| Interior H × W × D | 25.75" × 19.0" × 17.25" |
| Voltage | 115 V AC / 60 Hz |
| Amps | 2.0 |
| Energy Usage | 390 kWh/year |
| Weight | 88 lbs (40 kg) |
WARRANTY COVERAGE | |
| Parts & Labor | 1 year |
| Compressor | 5 years (part only) |
| Coverage Area | 48 contiguous United States |
DOCUMENTATION & RESOURCES | |
| Product Brochure | View PDF |
| User Manual | View PDF |
| Integrated Frame Instructions | View PDF |
| Icemaker Quick Start Guide | View PDF |
Warranty — The Year-by-Year Breakdown
Year 1: parts and labor on the whole unit. Years 2–5: the sealed compressor is covered as a replacement part only — labor is not included after year 1. Coverage applies in the 48 contiguous states. Full terms are in the user manual above.
