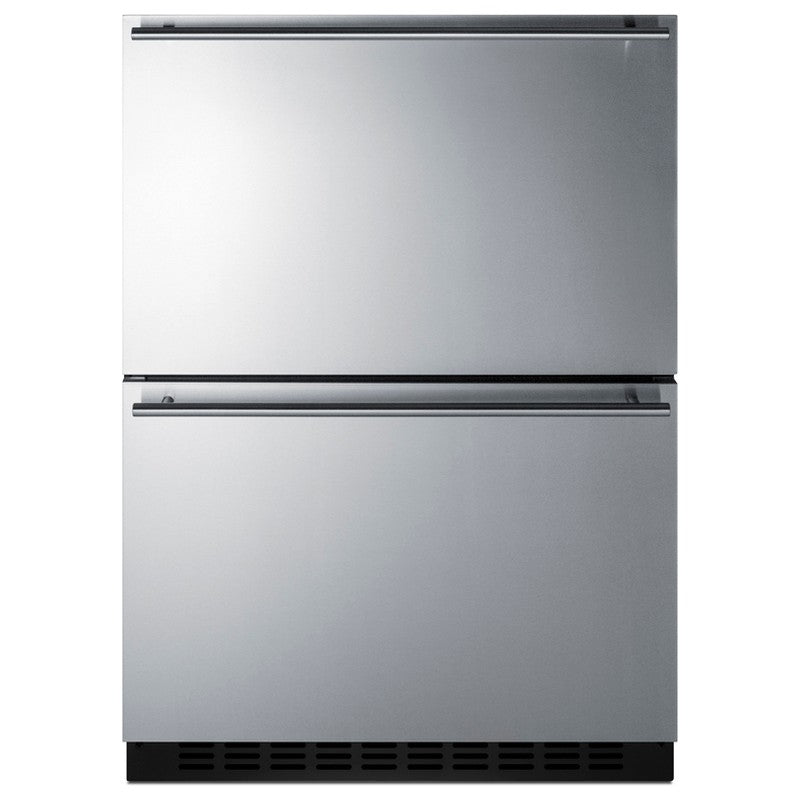

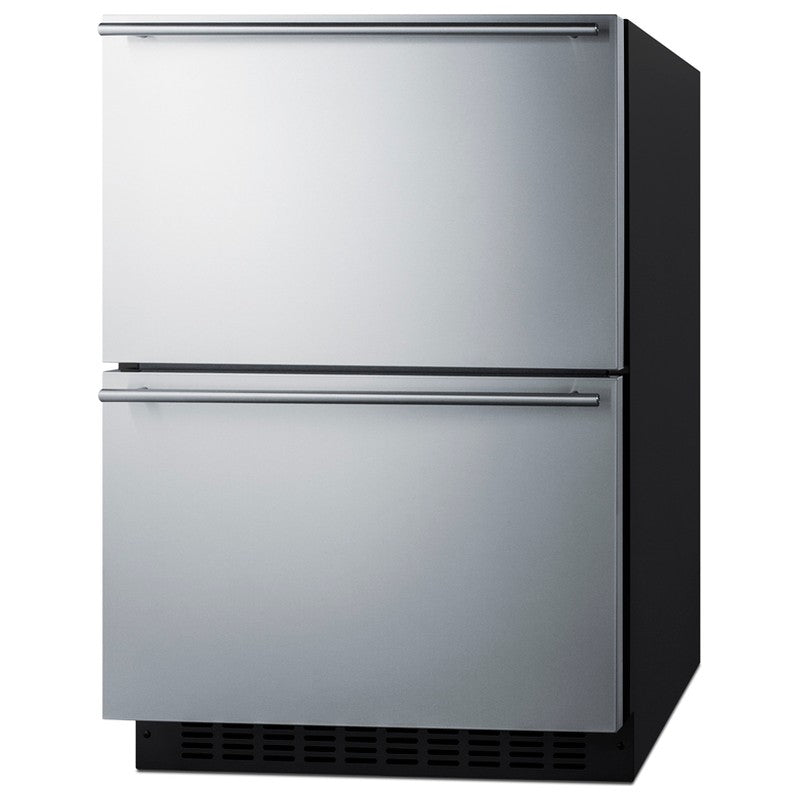

Summit 24-Inch 3.32 Cu. Ft. Outdoor ADA 2-Drawer Refrigerator-Freezer - ADRF244OS
A true freezer drawer for the outdoor kitchen — weatherproof, ADA height. Model ADRF244OS.
AuthorizedSummit Dealer Outdoor Approved
Weatherproof Refrigerator +
True Freezer ADA Compliant
32" Height
Frozen storage where the grill lives

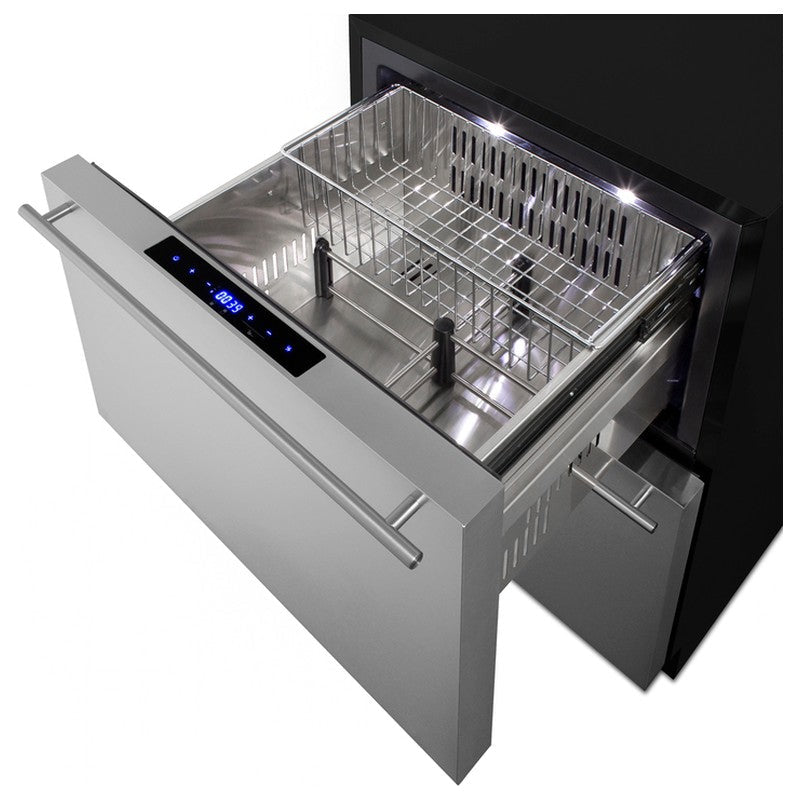

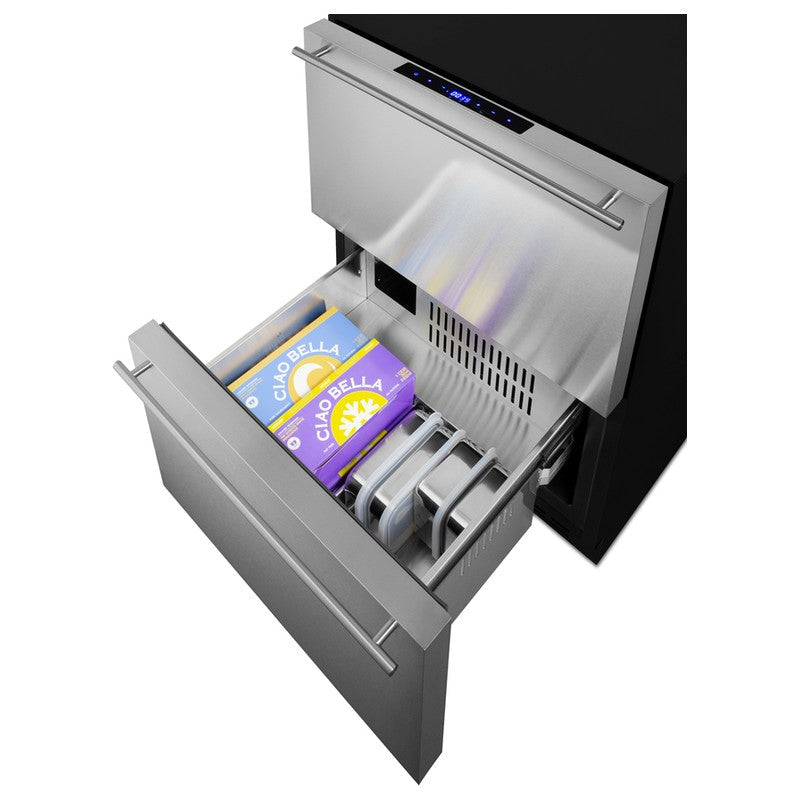

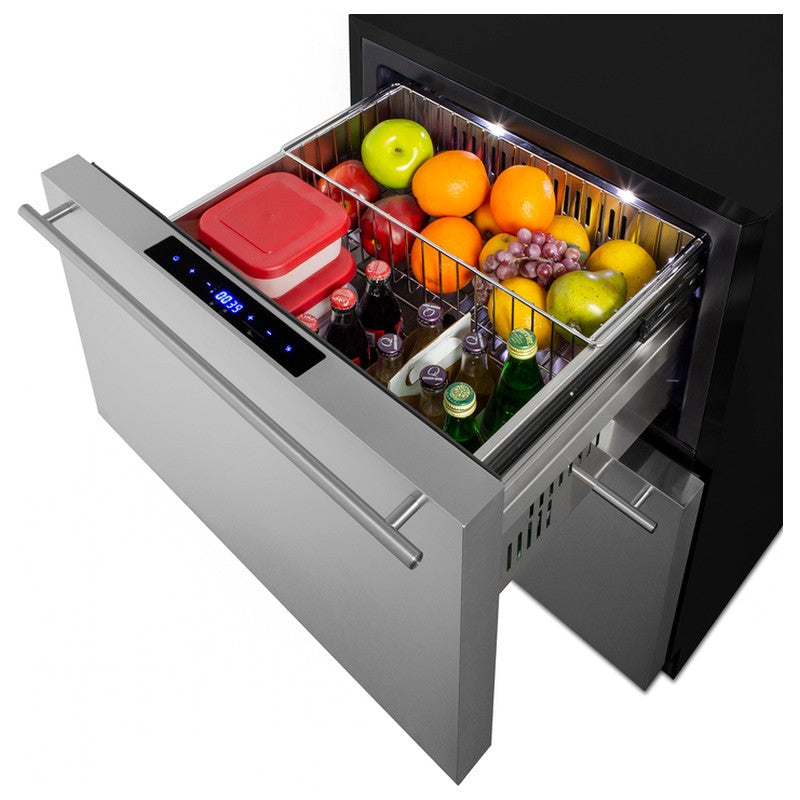

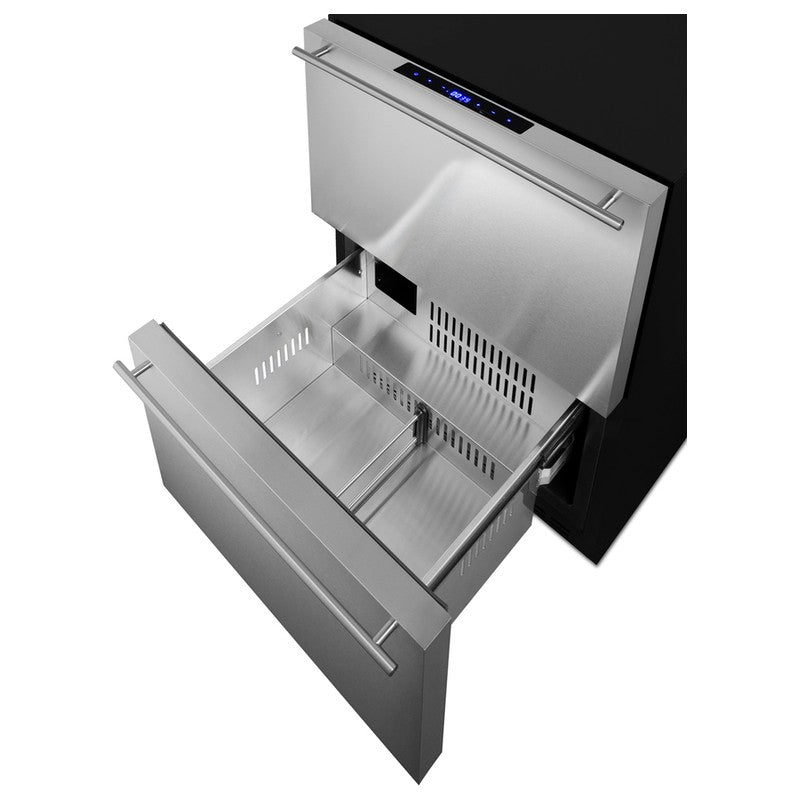

The ADRF244OS puts a real freezer outdoors: the top drawer is a 36–43°F refrigerator and the bottom drawer holds a true -11°F to 11°F — ice, proteins, and frozen sides steps from the grill, no trips inside. Weatherproof construction rates it for outdoor kitchens, the just-under-32" height slides beneath lower ADA compliant counters, and the front-breathing design builds flush into 24" wide openings or stands freestanding. Drawer interiors and exteriors are fully 304-grade stainless steel over a black cabinet, with professional handles included and panel-ready fronts accepting 23.43" x 14.1" overlays at 3/4" thickness.

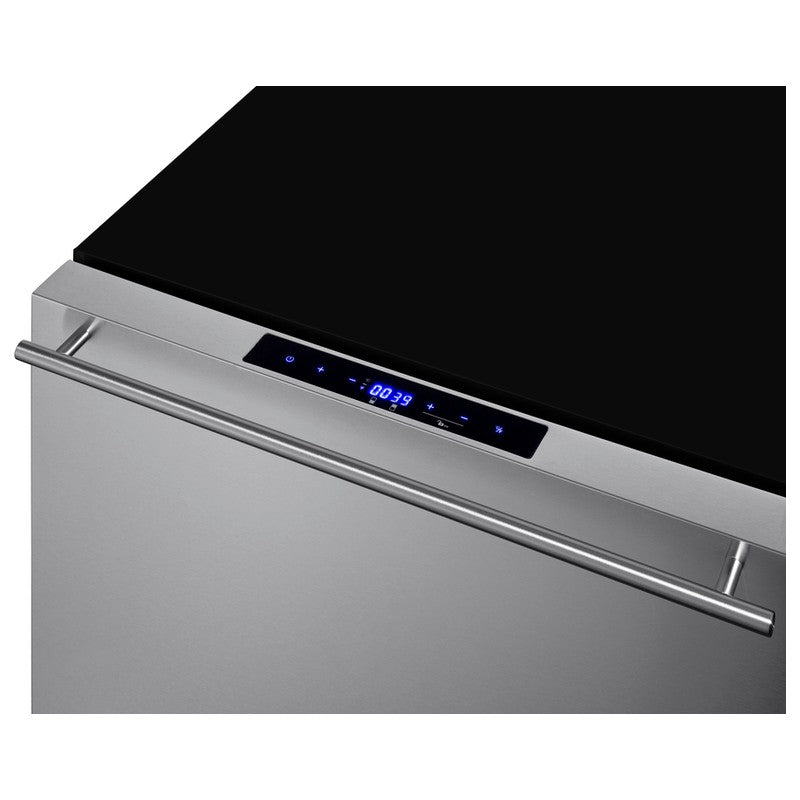

Total capacity is 3.32 cu. ft., split evenly — each drawer interior runs 8" H x 17" W x 14.5" D. Top-mounted digital controls with a °F/°C readout manage both compartments, frost-free operation eliminates freezer defrost chores, and an interior light, sabbath mode, and a quiet 34.6 dB round it out at 370 kWh/year on a single amp.
Why the ADRF244OS Instead of an Outdoor All-Refrigerator
- The only way to freeze outdoors at this size. Every other drawer unit in the line tops out at refrigerator temperatures — this one banks ice cream and ice through a cookout.
- Weatherproof and ADA. Outdoor-rated build at 32" nominal height for lowered counters, in the standard 24" cutout.
- Frost-free freezer. No manual defrosting, a rarity in compact freezer drawers.
- Panel-ready both drawers. Two 23.43" x 14.1" overlays and it disappears into the outdoor cabinetry.
- The trade-offs, stated plainly. No ice maker — it stores ice rather than making it. Capacity splits between functions at 1.66 cu. ft. per side, freezer duty runs 370 kWh/year, and overlay panels are not included.
What's Included
- ADRF244OS outdoor 2-drawer refrigerator-freezer, 304-grade stainless steel drawers, black cabinet
- Professional stainless steel handles
- Four leveling legs
- Panel-ready drawer fronts (overlay panels not included)
Installation
- Built-in or freestanding, outdoors or in. Front-breathing design fits flush in a 24" wide opening; keep the front vent clear and verify the cutout with the dimensions drawing below.
- Verify the ADA counter fit — 31.88" cabinet height plus leveling; 34.25" total depth with a drawer fully open.
- Plan a dedicated 115V outlet on a GFCI-protected 15A circuit outdoors; stand upright 2 hours before first power-on.
- Adding panels? Fabricate two overlays at 23.43" W x 14.1" H, 3/4" max thickness — weatherproof panel materials outdoors.
REFRIGERATOR-FREEZER SPECIFICATIONS | |
| Model | ADRF244OS |
| Type | 24" outdoor ADA-height 2-drawer refrigerator-freezer — top drawer refrigerator, bottom drawer freezer |
| Construction | Weatherproof; 304-grade stainless steel drawer interiors and exteriors, black cabinet; panel-ready fronts (23.43" x 14.1" overlays at 3/4", not included); professional handles included |
| Capacity | 3.32 cu. ft. total — each drawer interior 8" H x 17" W x 14.5" D |
| Refrigerator Range | 36–43°F (top drawer) |
| Freezer Range | -11°F to 11°F (bottom drawer) |
| Cooling / Defrost | Frost-free, interior fan; digital thermostat with °F/°C readout; 34.6 dB sound level |
| Convenience | Interior light, sabbath mode |
| Approvals | Outdoor approved; ETL (US), ETL-C (Canada), ETL-S sanitation |
| Refrigerant / Energy | R600a hydrocarbon (1.38 oz.), CARB compliant; 370 kWh/year |
DIMENSIONS & UTILITIES | |
| Dimensions (H x W x D) | 31.88" x 23.38" x 22.5" (23.88" deep with handle; 34.25" with drawer open) — 32" nominal ADA height |
| Weight | 105 lbs. |
| Electrical | 115V / 60Hz, 1.0A, dedicated 15A grounded circuit |
WARRANTY COVERAGE | |
| Parts / Labor | 1 year |
| Compressor | 5 years (replacement part; labor not included after year 1) |
DOCUMENTATION & RESOURCES | |
| ADRF244OS Brochure | View PDF |
| Series User Manual | View PDF |
| Series Dimensions Drawing | View PDF |
Warranty — The Year-by-Year Breakdown
Summit covers the ADRF244OS with a one (1) year limited warranty on parts and labor and a five (5) year compressor warranty. Plainly: for the first year within the 48 contiguous states, defects in materials or workmanship are covered including the labor to fix them; from years two through five, the compressor itself remains covered as a replacement part, with labor no longer included. Full terms are in the user manual above.
About Summit Appliance
Summit Appliance is the specialty refrigeration division of Felix Storch, Inc., an ISO 9001:2015 certified, family-owned manufacturer at 770 Garrison Avenue, Bronx, NY 10474. Reach the manufacturer at 718-893-3900 or info@summitappliance.com, or visit summitappliance.com.
BBQ Kitchen Pros is an authorized Summit Appliance dealer. Every unit ships new in the manufacturer's packaging.
Questions on fit, panels or lead time? Call BBQ Kitchen Pros at 888-678-3530.
