Summit 19-Inch 3.13 Cu. Ft. Shallow-Depth Outdoor All-Stainless Panel-Ready Glass-Door Beverage Cooler, Black Interior - SPR488BOSCSSPNR
Panel-ready glass door, stainless wrapped cabinet, black interior and a 17.75" depth: the shallow cooler that matches the cabinetry and still looks finished from the side. Model SPR488BOSCSSPNR.
AuthorizedSummit Dealer NSF-7
Commercial Listed Panel-Ready
Door Frame Stainless
Wrapped Cabinet
Cabinet-Matched Door, Stainless Sides, Black Interior

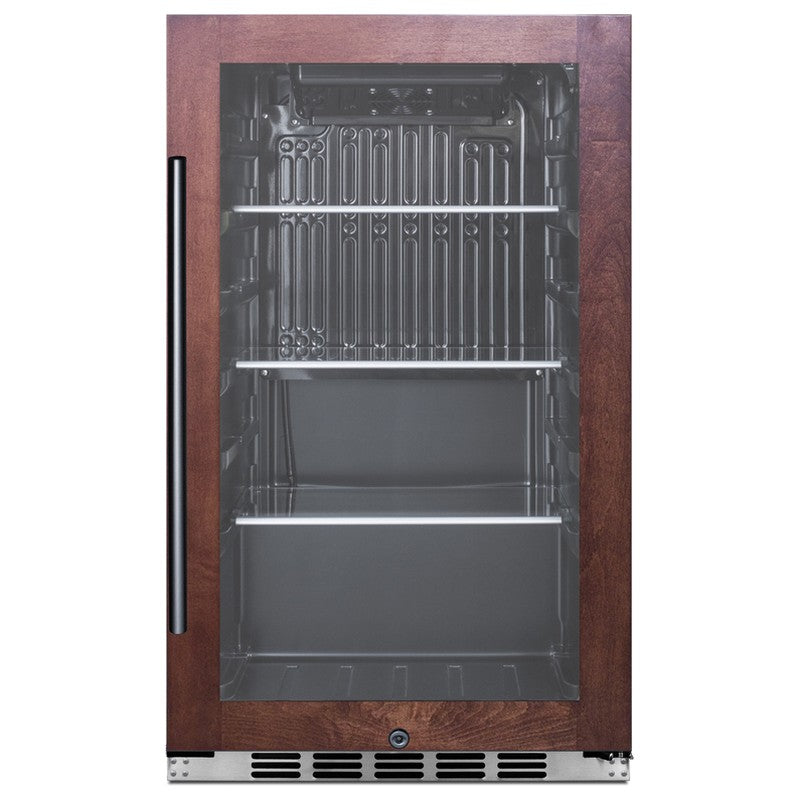

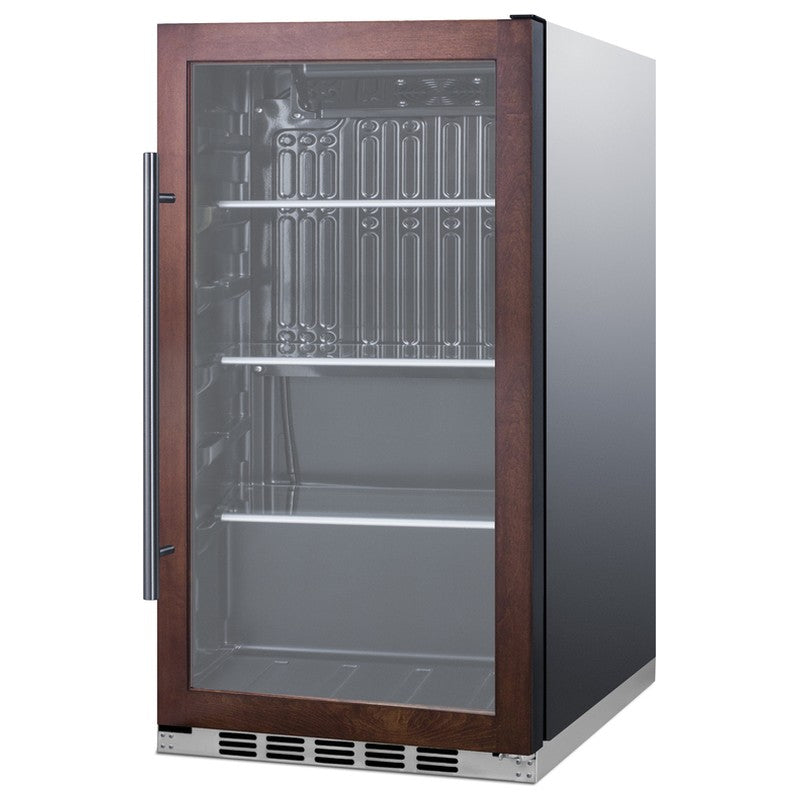

The SPR488BOSCSSPNR takes Summit’s shallow-depth outdoor beverage cooler and fits the double-pane glass door with a panel-ready frame, so you overlay a panel that matches your cabinetry and supply your own handle. Panel frame: 31 9/16" H × 18 3/4" W at 3/4" minimum thickness. The cabinet is 19" wide, 17.75" deep, 34" tall and height-adjustable on its leveling legs; it is wrapped in 304-grade stainless for exposed sides, with a black interior behind the glass. Weatherproof-rated, ETL-S listed to NSF-7 and meets UL-471 for indoor or outdoor commercial use.

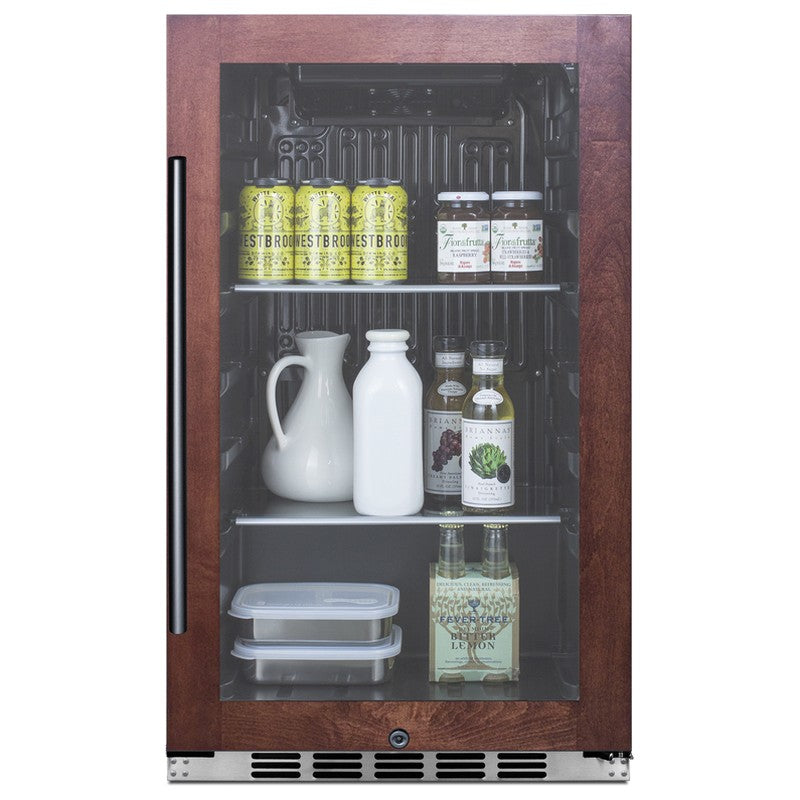

Inside: a jet black interior with three adjustable glass shelves in six positions, an interior light, an interior fan for even top-to-bottom cooling and automatic defrost. The dial thermostat sits inside with settings across 34–50°F. Sealed back and integrated hinge keep the installed depth honest. Rated 285 kWh/year, 1.3 amps, 32.6 dB, 85 lbs.
Why the SPR488BOSCSSPNR Instead of the SPR488BOSCSS
- Panel-ready frame — the SPR488BOSCSS has a finished stainless-trim door and cannot be paneled.
- Height-adjustable to meet a 34" counter exactly.
- Same 3.13 cu. ft., black interior, stainless cabinet, six-position glass shelves, NSF-7/UL-471.
- The trade-offs, stated plainly. Panel and handle are not included and not optional. Door is factory reversible only — order the LHD option for left-hinge. No lock listed on this model. Dial thermostat. 34°F minimum. 17.75" deep, 3/4" more than the SPR488BOSCSS. Black interior shows contents less clearly. Ten pounds heavier at 85 lbs. No freezer, no ice maker.
What's Included
- SPR488BOSCSSPNR beverage cooler with panel-ready double-pane tempered glass door frame and 304 stainless wrapped cabinet
- 3 adjustable glass shelves
- User manual
Installation
- Built-in under a 34" counter in a cutout at least 18" deep, or freestanding on a bar island.
- Cabinet depth 17.75". Total depth with the door open 90° is 34.75".
- Keep the glass door out of direct afternoon sun.
- Mount your panel (31 9/16" H × 18 3/4" W, ≥3/4") to the door frame and attach your handle before setting the unit in place; see the panel assembly guide below.
- Plug into a dedicated 115V/15A outlet. Outdoors that outlet must be GFCI-protected. If the unit was transported on its side, stand it upright for 2 hours before plugging in.
REFRIGERATOR SPECIFICATIONS | |
| Model | SPR488BOSCSSPNR |
| Type | Outdoor built-in / freestanding beverage cooler |
| Capacity | 3.13 cu. ft. (89 L) |
| Temperature Range | 34 to 50°F |
| Defrost | Automatic |
| Thermostat | Dial, interior |
| Fan | Interior |
| Door / Cabinet | Double-pane tempered glass, panel-ready frame / 304 stainless steel wrapped |
| Interior | Jet black |
| Shelves | 3 adjustable glass, 6 positions; can storage |
| Lighting | Interior light |
| Door Swing | Right-hinge as shipped (RHD); factory reversible only — order LHD option for left-hinge |
| Panel Spec | Panel frame: 31 9/16" H × 18 3/4" W, 3/4" minimum thickness; handle customer-supplied |
| Sanitation | ETL-S listed to NSF-7; meets UL-471 |
| Electrical Safety | ETL / ETL-C |
| Sound Level | 32.6 dB |
| Refrigerant | R600a, 0.88 oz |
| Leveling Legs | 2, height-adjustable |
| UPC | 761101077819 |
DIMENSIONS & UTILITIES | |
| Height of Cabinet | 34.0" (86 cm) |
| Height Range | Height-adjustable on leveling legs |
| Width | 19.0" (48 cm) |
| Depth | 17.75" (45 cm) |
| Depth, Door Open 90° | 34.75" (88 cm) |
| Interior H × W × D | 29.0" × 16.0" × 12.75" |
| Compressor Step H × W × D | 7.0" × 16.0" × 6.25" |
| Voltage | 115 V AC / 60 Hz |
| Amps | 1.3 |
| Energy Usage | 285 kWh/year |
| Weight | 85 lbs (39 kg) |
WARRANTY COVERAGE | |
| Parts & Labor | 1 year |
| Compressor | 5 years (part only) |
| Coverage Area | 48 contiguous United States |
DOCUMENTATION & RESOURCES | |
| Product Brochure | View PDF |
| User Manual | View PDF |
| Panel Assembly Guide | View PDF |
Warranty — The Year-by-Year Breakdown
Year 1: parts and labor on the whole unit. Years 2–5: the sealed compressor is covered as a replacement part only — labor is not included after year 1. Coverage applies in the 48 contiguous states. Full terms are in the user manual above.
About Summit Appliance
Summit Appliance is a division of Felix Storch, Inc., an ISO 9001:2015 certified, family-owned manufacturer based at 770 Garrison Avenue, Bronx, NY 10474. Phone 718-893-3900, email info@summitappliance.com, web summitappliance.com.
BBQ Kitchen Pros is an authorized Summit Appliance dealer. Every unit ships new in the manufacturer's packaging.
Questions on fit, panels or lead time? Call BBQ Kitchen Pros at 888-678-3530.
