Summit 18-Inch 60 Lb. Panel-Ready Outdoor Clear Icemaker - BIM182OSIF
The full-height version of Summit’s panel-ready clear icemaker: 60 lbs a day, three cube sizes, touch controls, and an integrated frame door for your own overlay panel. Model BIM182OSIF.
AuthorizedSummit Dealer Panel-Ready
Integrated Frame 60 Lb. Clear
Ice Daily Three Cube
Sizes
Pick Your Cube, Hide the Machine
The BIM182OSIF is Summit’s 18-inch panel-ready outdoor clear icemaker for built-in or freestanding use: 34.75" tall, 17.75" wide and 23.75" deep, with an integrated stainless steel door frame that accepts a full overlay panel (recommended 28-1/16" H × 17-11/16" W at 3/4" thick) with no exposed frame. It produces up to 60 lbs of clear ice cubes in a day cycle and stores 33 lbs, with an ice selection feature that lets you choose small, medium or large clear cubes and a touch control panel with indicator lights for each production stage. Per Summit the unit is sized at 32-1/2" and can be raised to 34-3/4" to best fit a variety of spaces. Weatherproof stainless construction, built-in internal pump, automatic defrost, interior light.
Why the BIM182OSIF Instead of the BIM182OSADAIF
- Sized for standard counter heights — adjustable between 32-1/2" and 34-3/4" to best fit the run.
- Ice selection called out on this model: small, medium or large clear cubes from the touch panel.
- Same slim 18" width, 60 lb / 33 lb platform, integrated frame door and internal pump.
- The trade-offs, stated plainly. The overlay panel is not included and should be made to 28-1/16" × 17-11/16" × 3/4". The door is factory reversible rather than field reversible. A drain and water connection are required, and the 11.8 amp draw wants a robust dedicated circuit. Summit publishes no NSF sanitation listing or ENERGY STAR certification for this model.
What's Included
- BIM182OSIF icemaker with panel-ready integrated frame door and stainless steel cabinet
- Internal pump; interior light; height-adjustment kickplate; leveling legs
- Brochure, user manual, installation drawing and overlay panel instructions
Installation

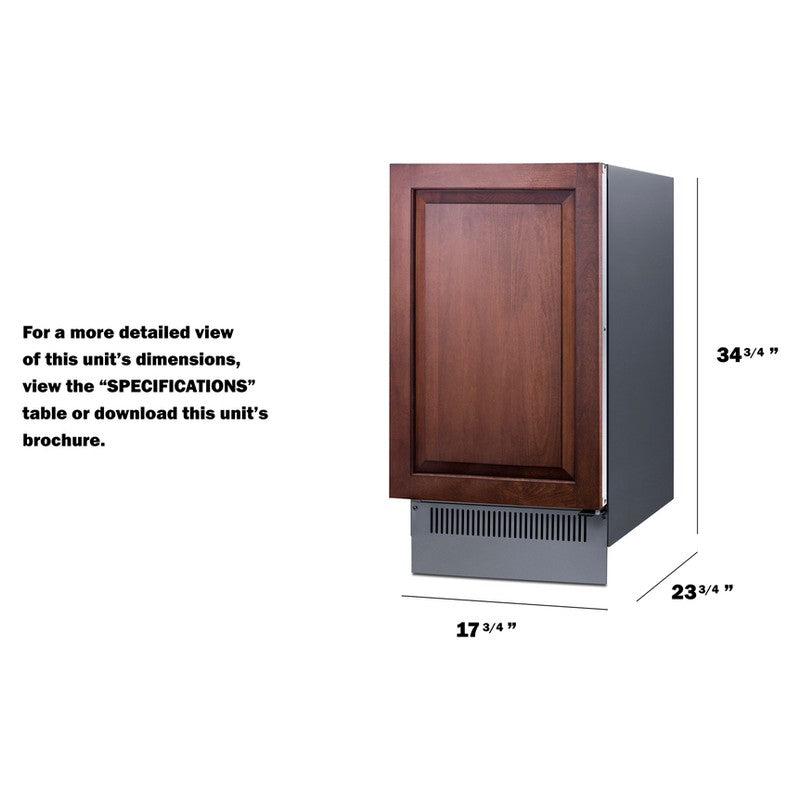

- Built-in fully recessed under the counter or freestanding; cabinet is 34.75" tall, 17.75" wide, 23.75" deep (24.75" with panel); the door needs 41" of clearance at 90°.
- Mount your 28-1/16" × 17-11/16" × 3/4" overlay panel per the overlay panel instructions below.
- Connect the water supply and drain per the user manual; the internal pump gives flexibility in routing.
- Plug into a dedicated 115V/15A grounded outlet. Outdoors that outlet must be GFCI-protected. If the unit was transported on its side, stand it upright for 2 hours before plugging in.
ICEMAKER SPECIFICATIONS | |
| Model | BIM182OSIF |
| Type | Panel-ready outdoor clear icemaker, built-in or freestanding |
| Daily Ice Production | 60.0 lbs (27 kg) |
| Ice Storage Capacity | 33.0 lbs (15 kg) |
| Ice Shape | Clear cube |
| Size of Cube | 0.87" × 0.87" × 0.87" |
| Ice Cube Sizes | 3 — small, medium or large selectable |

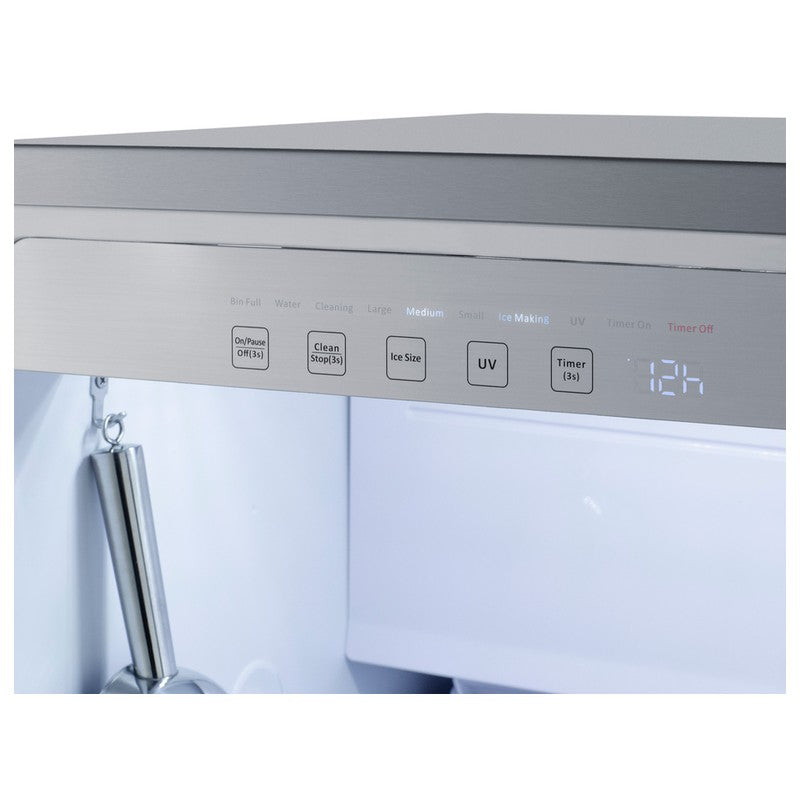

| Controls | Touch control panel with production-stage indicator lights |
| Defrost | Automatic |
| Pump | Built-in internal pump |
| Drain Required | Yes |
| Interior Light | Yes |
| Height Adjustable | Yes — sized at 32-1/2", raisable to 34-3/4" (per Summit) |
| Door / Cabinet | Panel-ready integrated frame / stainless steel |
| Panel Spec | Recommended full overlay panel 28-1/16" H × 17-11/16" W at 3/4" thick, customer-supplied |
| Door Swing | Right-hand, factory reversible |
| Electrical Safety | ETL / ETL-C |
| Amps | 11.8 |
| Leveling Legs | 4 |
| UPC | 761101150802 |
DIMENSIONS & UTILITIES | |
| Height of Cabinet | 34.75" (88 cm); 35.0" nominal |
| Width | 17.75" (45 cm); 18.0" nominal |
| Depth | 23.75" (60 cm) |
| Depth with Panel | 24.75" (63 cm) |
| Depth, Door at 90° | 41.0" (104 cm) |
| Interior H × W × D | 18.75" × 14.75" × 16.75" |
| Voltage | 115 V AC / 60 Hz |
| Refrigerant | R290, 1.37 oz. |
| High / Low Side PSI | 330.0 / 160.0 |
| Weight | 95 lbs (43 kg) |
WARRANTY COVERAGE | |
| Parts & Labor | 1 year |
| Compressor | 5 years (part only) |
| Coverage Area | 48 contiguous United States |
DOCUMENTATION & RESOURCES | |
| Product Brochure | View PDF |
| User Manual | View PDF |
| Installation Drawing | View PDF |
| Overlay Panel Instructions | View PDF |
Warranty — The Year-by-Year Breakdown
Year 1: parts and labor on the whole unit. Years 2–5: the sealed compressor is covered as a replacement part only — labor is not included after year 1. Coverage applies in the 48 contiguous states. Full terms are in the user manual above.
About Summit Appliance
Summit Appliance is a division of Felix Storch, Inc., an ISO 9001:2015 certified, family-owned manufacturer based at 770 Garrison Avenue, Bronx, NY 10474. Phone 718-893-3900, email info@summitappliance.com, web summitappliance.com.
BBQ Kitchen Pros is an authorized Summit Appliance dealer. Every unit ships new in the manufacturer's packaging.
Questions on fit, ice production or lead time? Call BBQ Kitchen Pros at 888-678-3530.
