Summit 15-Inch 45 Lb. Built-In Outdoor Clear Icemaker - BIM47OS
The commercially papered clear icemaker: NSF-12 listed, commercial ENERGY STAR certified, 45 lbs of clear cubes a day from a 15-inch outdoor cutout. Model BIM47OS.
AuthorizedSummit Dealer NSF-12
Commercial Listed ENERGY STAR
Certified 45 Lb. Clear
Cubes Daily
Clear Cubes With the Commercial Checkboxes Ticked
The BIM47OS is Summit’s built-in undercounter commercially listed outdoor clear icemaker: 33.63" tall, 14.63" wide and 22.5" deep, ETL-S listed to NSF-12 commercial standards and ENERGY STAR certified for commercial performance. It makes up to 45 lbs of clear 7/8" ice cubes in a day cycle and stores 25 lbs — the ice is produced in sheets and breaks easily into cubes with the provided scoop. The weatherproof stainless steel construction handles outdoor installation, an internal pump affords flexibility in placing the unit, and automatic defrost keeps maintenance down. Exterior fan, reversible left-hand door.
Why the BIM47OS Instead of the BIM63OSADA
- The commercial paperwork: NSF-12 sanitation listing and commercial ENERGY STAR certification that the gourmet BIM63 line doesn’t publish.
- Standard 33.63" height for regular counter runs, with the ADA-height BIM47OSADA available for lower counters.
- Frugal 2.5 amp draw on a NEMA 5-15P plug versus 6.0 amps on the BIM63OSADA.
- The trade-offs, stated plainly. Standard 7/8" cubes rather than gourmet top hat ice, at 45 lbs a day versus 68. Ice arrives in sheets you break apart with the scoop. A drain and water connection are required. The door ships left-hand swing (reversible), and no interior light or height-adjustable kickplate is published for this model.
What's Included
- BIM47OS icemaker with stainless steel door and cabinet
- Internal pump; ice scoop; leveling legs
- Brochure, user manual and installation drawing
Installation
- Built-in fully recessed under the counter or freestanding outdoors; cabinet is 33.63" tall, 14.63" wide, 22.5" deep (24.5" with handle); the door needs 36.25" of clearance at 90°.
- Connect the water supply and drain per the user manual; the internal pump gives flexibility in routing.
- Plug into a dedicated 115V/15A grounded outlet. Outdoors that outlet must be GFCI-protected. If the unit was transported on its side, stand it upright for 2 hours before plugging in. Uses a standard NEMA 5-15P plug.
ICEMAKER SPECIFICATIONS | |
| Model | BIM47OS |
| Type | Built-in outdoor clear icemaker, commercially listed |
| Daily Ice Production | 45.0 lbs (20 kg) |
| Ice Storage Capacity | 25.0 lbs (11 kg) |

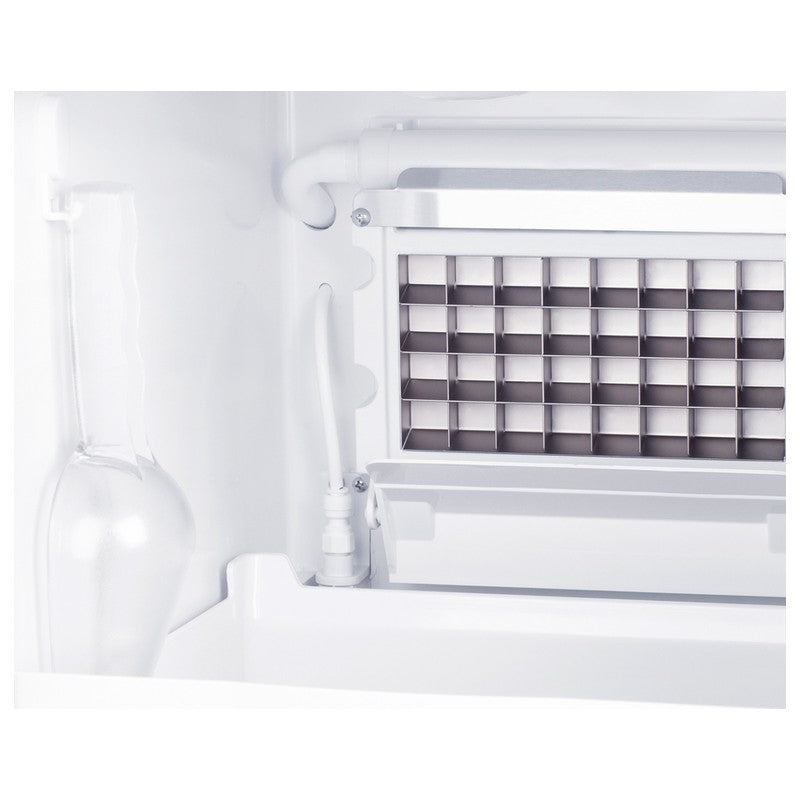

| Ice Shape | Clear cube (produced in sheets, breaks apart with provided scoop) |
| Size of Cube | 7/8" × 7/8" × 7/8" |
| Ice Cube Sizes | 1 |
| Defrost | Automatic |
| Pump | Built-in internal pump |
| Drain Required | Yes |
| Sanitation | ETL-S listed to NSF-12 |
| Energy | ENERGY STAR certified, commercial |
| Door / Cabinet | Stainless steel / stainless steel |
| Door Swing | Left-hand, reversible |
| Fan | Exterior |
| Electrical Safety | UL / ULC |
| Plug Type | NEMA 5-15P |
| Amps | 2.5 |
| Leveling Legs | 4 |
| UPC | 761101067742 |

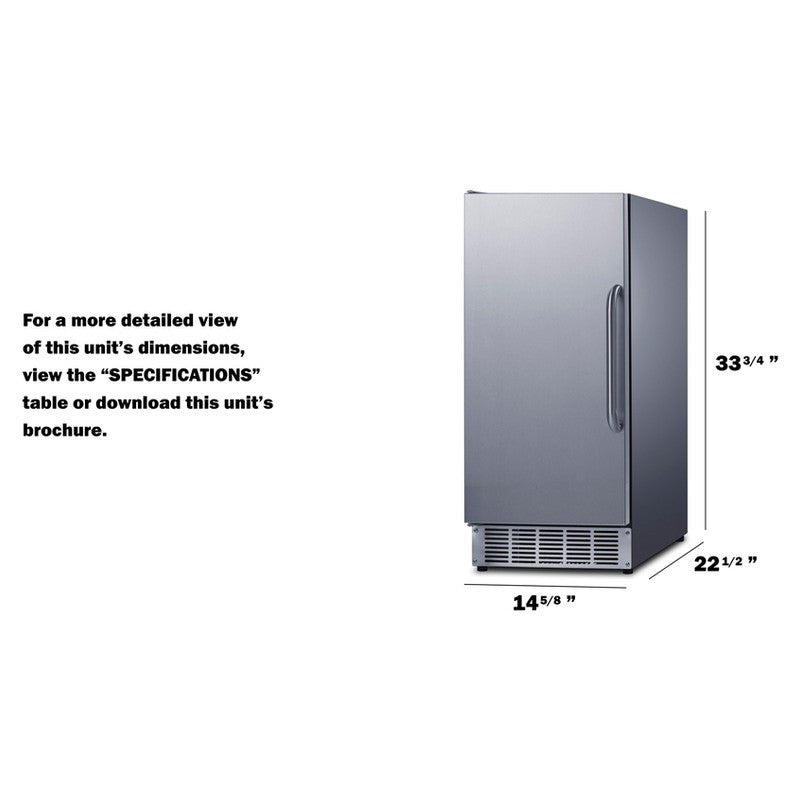

DIMENSIONS & UTILITIES | |
| Height of Cabinet | 33.63" (85 cm) |
| Width | 14.63" (37 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.5" (62 cm) |
| Depth, Door at 90° | 36.25" (92 cm) |
| Interior H × W × D | 18.75" × 11.25" × 15.5" |
| Voltage | 115 V AC / 60 Hz |
| Refrigerant | R290a, 1.87 oz. |
| High / Low Side PSI | 286.0 / 110.0 |
| Weight | 100 lbs (45 kg) |
WARRANTY COVERAGE | |
| Parts & Labor | 1 year |
| Compressor | 5 years (part only) |
| Coverage Area | 48 contiguous United States |
DOCUMENTATION & RESOURCES | |
| Product Brochure | View PDF |
| User Manual | View PDF |
| Installation Drawing | View PDF |
Warranty — The Year-by-Year Breakdown
Year 1: parts and labor on the whole unit. Years 2–5: the sealed compressor is covered as a replacement part only — labor is not included after year 1. Coverage applies in the 48 contiguous states. Full terms are in the user manual above.
About Summit Appliance
Summit Appliance is a division of Felix Storch, Inc., an ISO 9001:2015 certified, family-owned manufacturer based at 770 Garrison Avenue, Bronx, NY 10474. Phone 718-893-3900, email info@summitappliance.com, web summitappliance.com.
BBQ Kitchen Pros is an authorized Summit Appliance dealer. Every unit ships new in the manufacturer's packaging.
Questions on fit, ice production or lead time? Call BBQ Kitchen Pros at 888-678-3530.
