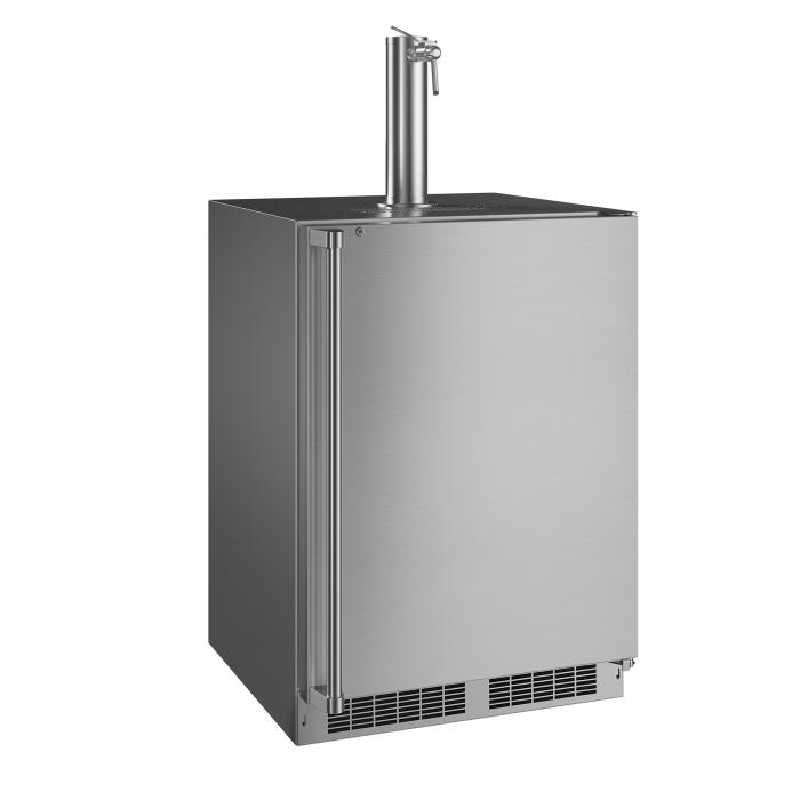

Marvel 24-Inch 5.7 Cu. Ft. Outdoor Dispenser With Single Wine & Beverage Tap
Ships In: 1-3 Days
- Description
- Specs & Dimensions
- Shipping & Delivery
- Easy Returns
Marvel Outdoor 24-Inch Stainless Steel Built-In Beverage Dispenser with Single Tap MOKR224-SSC1A
|
Key Features
|
|
The Marvel Outdoor 24-Inch Stainless Steel Built-In Beverage Dispenser with Single Wine & Beverage Tap (MOKR224-SSC1A) is an outdoor-rated draft dispenser built to serve wine, still cocktails, nitrogen-infused cold brew coffee, and any non-carbonated draft beverage directly from the keg — permanently installed in your outdoor kitchen. The 5.7 cu. ft. interior fits a full-size half barrel, a quarter barrel, a slim quarter barrel, two slim 1/6 barrels, or two Cornelius kegs. The single double-insulated stainless steel draft tower delivers one beverage at a time with reduced foam and consistent pour temperature. The included nitrogen tank and Lo-Boy coupler get you pouring quickly, and the built-in undercounter design integrates seamlessly into outdoor kitchen cabinetry, grill islands, and bar stations using the same standard 24-inch cutout as every other Marvel outdoor unit. When the keg runs out, two stow-on-board stainless steel shelves convert the interior to bottle and can storage — making the MOKR224-SSC1A a high-capacity outdoor refrigerator between keg events. Dynamic Cooling Technology maintains 34°F to 60°F temperature control, the integrated drain system handles spillage, and the door lock secures everything. Designed and built in America with over 130 years of Marvel refrigeration expertise. |
Single Wine & Beverage Tap — One Keg, One Tap, Nitrogen-Powered Draft Pouring
The MOKR224-SSC1A is configured with a single wine and beverage tap — one faucet mounted on a double-insulated stainless steel draft tower. This is the right configuration for dispensing one keg of wine or non-carbonated beverage at a time: tap a keg of your favorite red or white wine for a dinner party, a keg of rosé for a summer gathering, or a keg of nitrogen-infused cold brew coffee for a brunch. The nitrogen system pressurizes the keg and pushes the beverage up through the draft line and out the faucet — without adding carbonation. This is the critical difference from the beer and beverage models: CO2 would carbonate wine and other still beverages, ruining their character. Nitrogen is an inert gas that moves the liquid without changing its flavor, texture, or carbonation level. Nitrogen is the correct gas for wine (all varietals), still cocktails, nitrogen-infused coffee (nitro cold brew), iced tea, lemonade, and any other non-carbonated draft beverage. The included nitrogen tank stores securely inside the cabinet's dedicated gas tank compartment, and the Lo-Boy coupler (U.S. Type D) connects to standard kegs with a lower profile that makes it easier to tap and swap tall kegs in the undercounter cabinet.
Single Tap — One Beverage at a Time
One faucet on one double-insulated stainless steel draft tower. Dispense a single keg of wine, still cocktails, nitro cold brew, iced tea, lemonade, or any non-carbonated draft beverage. Simple, clean, nitrogen-powered draft pouring from a single source.
Nitrogen Tank Included
Ships with a nitrogen tank ready for non-carbonated beverage dispensing. Nitrogen pushes wine and other still beverages from keg to faucet without adding carbonation — preserving the still character that CO2 would destroy. Fill the tank at any local gas supplier.
Double-Insulated Draft Tower
The stainless steel tower is double-insulated to keep the beer line cold from the keg all the way to the faucet. This is critical outdoors where the tower is exposed to direct sun and hot ambient air — without insulation, warm lines produce excessive foam and flat-tasting pours.
Lo-Boy Coupler (U.S. Type D)
Marvel's Lo-Boy coupler has a lower profile than standard couplers, giving you more clearance to store, tap, and swap tall U.S. Type D half barrels inside the undercounter cabinet. Less fighting with the keg, faster changeovers.
5.7 Cu. Ft. — Keg Storage & Convertible Bottle/Can Shelving
At 5.7 cubic feet, the MOKR224-SSC1A has the largest interior capacity of any unit in the Marvel Outdoor Collection — sized to accommodate a full-size half barrel (15.5 gallons / 124 pints / approximately 165 twelve-ounce servings). The cabinet also fits a quarter barrel, a slim quarter barrel, two slim 1/6 barrels (for serving two varieties on rotation by swapping the tap line), or two Cornelius kegs for homebrewers (Cornelius ball-lock fitting not included). When the keg is empty and the next event is days away, two stow-on-board stainless steel shelves install inside the cabinet and convert the entire 5.7 cu. ft. interior into bottle and can storage — making the unit function as a high-capacity outdoor refrigerator. The shelves store on board the unit when not in use, so they're always available for the conversion without hunting for parts.
Keg Compatibility
Fits 1 half barrel (full-size keg), 1 quarter barrel, 1 slim quarter barrel, 2 slim 1/6 barrels, or 2 Cornelius kegs. The 5.7 cu. ft. interior accommodates standard American keg dimensions with room for the nitrogen tank and coupler hardware.
Two Stow-On-Board Shelves
Two stainless steel shelves store on board the unit and install when the keg is removed — converting the 5.7 cu. ft. interior into a high-capacity bottle and can refrigerator. One unit, two functions: draft wine and beverage dispenser when tapped, refrigerator between events.
Built-In Undercounter Installation
Designed for permanent built-in installation in outdoor kitchen cabinetry, grill islands, and bar stations. Fits the same standard 24-inch cutout (24" W × 24" D × 34" to 35" H) as every other Marvel outdoor unit — install alongside refrigerators, freezers, and ice machines for a complete outdoor kitchen.
Integrated Drain System
A built-in drain basin and drip tray capture spillage during pouring, line changes, and keg swaps. Essential for outdoor use where drips and spills are inevitable — keeps the area clean and prevents sticky buildup on outdoor surfaces.
Dynamic Cooling & Digital Controls — 34°F to 60°F Draft-Perfect Temperature
Draft beverages are temperature-sensitive — and wine especially so. The MOKR224-SSC1A's digital controls set the temperature anywhere from 34°F to 60°F, letting you dial in the exact serving temperature for whatever's on tap. Sparkling and light white wines serve best at 38°F–45°F. Full-bodied whites and rosés at 45°F–50°F. Light reds at 50°F–55°F. Full-bodied reds at 55°F–60°F. Nitro cold brew coffee at 34°F–38°F. The Dynamic Cooling Technology maintains the set temperature even during heavy outdoor use — when the door opens repeatedly, when ambient temperatures climb, and when multiple pints are pulled in quick succession. Door ajar alerts prevent the keg from warming if the door is accidentally left open, and temperature alerts flag any drift from the set range. Arctic white LED theater-style lighting illuminates the interior for keg identification and shelf access.
Temperature Range: 34°F to 60°F
The widest temperature range lets you serve every draft style at its optimal temperature — from 34°F for ice-cold lagers and seltzers to 60°F for room-temperature ales and specialty pours. One unit handles the full spectrum of draft beverages.
Door Lock
The integrated door lock secures the keg, nitrogen tank, coupler hardware, and any stored bottles or cans — important for outdoor dispensers that may be accessible to guests, minors, or service staff when unsupervised.
Choosing Your MOKR224 Configuration — Single vs. Twin, Beer vs. Wine
The Marvel MOKR224 outdoor built-in beverage dispenser is available in four configurations — all sharing the same 5.7 cu. ft. cabinet, Dynamic Cooling Technology, stow-on-board shelves, door lock, and outdoor-rated construction. The difference is the draft tower and gas type. Beer & Beverage models use CO2 for carbonated draft beverages (beer, cider, seltzer, soda, kombucha, cold brew). Wine & Beverage models use nitrogen for non-carbonated draft beverages (wine, still cocktails, nitrogen-infused coffee). Single tap models dispense one beverage at a time. Twin tap models dispense two beverages simultaneously from two kegs. The MOKR224-SSC1A is the single wine and beverage tap — the simplest configuration for serving one non-carbonated draft beverage (wine, still cocktails, nitro coffee) at a time.
|
Feature |
MOKR224-SSA1A |
MOKR224-SSB1A |
MOKR224-SSC1A |
MOKR224-SSD1A |
| Tap Count | Single | Twin | Single | Twin |
| Beverage Type | Beer & Carbonated | Beer & Carbonated | Wine & Non-Carbonated | Wine & Non-Carbonated |
| Gas Type | Nitrogen (Included) | Nitrogen (Included) | Nitrogen (Included) | Nitrogen (Included) |
| Dispenses | Beer, Cider, Seltzer, Soda, Kombucha, Cold Brew | Beer, Cider, Seltzer, Soda, Kombucha, Cold Brew | Wine, Still Cocktails, Nitro Coffee | Wine, Still Cocktails, Nitro Coffee |
| Best For | One keg, simple setup | Two kegs, variety | One wine keg, simple setup | Two wine kegs, variety |
The Marvel Difference — Over 130 Years of Refrigeration Expertise
Marvel Refrigeration has been manufacturing refrigeration products since 1892 — making them North America's longest-standing refrigeration company with over 130 years of continuous expertise. Every MOKR224-SSC1A outdoor built-in beverage dispenser is designed and built in America to Marvel's 15 Distinct Quality Details — a set of engineering and manufacturing standards that define every product in the lineup. As part of the Middleby Residential luxury appliance portfolio, Marvel maintains the craftsmanship, materials, and performance testing that serious outdoor entertaining demands. Visit MarvelRefrigeration.com to explore the full Marvel Outdoor Collection.
Marvel Warranty Coverage — MOKR224-SSC1A
|
Marvel Refrigeration Limited Warranty Marvel warrants to the original purchaser that the outdoor built-in beverage dispenser and all parts are free from defects in material and workmanship under normal residential use. Full unit warranty: one (1) year from the date of original purchase, including parts and labor. Cosmetic defects are covered for sixty (60) days from purchase. Sealed system warranty: five (5) years covering the compressor, condenser, evaporator, drier, and all connecting tubing (parts only, labor not included). This warranty applies only to the original purchaser and is non-transferable. The warranty applies to units operated outside only if designed for outdoor use by model and serial number. Exclusions include non-residential use, negligence, accident, improper use, maintenance, installation, service, repair, acts of God, consumable parts (water filters, light bulbs, nitrogen tanks), and food or beverage loss. All service must be performed by a Marvel factory authorized servicer. Refer to the manufacturer's warranty document for complete terms and conditions. |
Manufacturer Information & Documentation
Download official Marvel specification sheets and warranty documents for the MOKR224-SSC1A 24-inch outdoor built-in beverage dispenser with single wine and beverage tap.
- 🔗 Marvel MOKR224 Outdoor Built-In Beverage Dispenser Spec Sheet
- 🔗 Marvel Outdoor Refrigeration Warranty
Frequently Asked Questions — Marvel Outdoor Built-In Beverage Dispenser (Single Wine Tap)
|
Can the MOKR224-SSC1A be used outdoors? Yes. The MOKR224-SSC1A is part of the Marvel Outdoor Collection and is specifically designed and rated for outdoor use. The cabinet, draft tower, and all components are engineered for outdoor environments including covered patios, pool decks, grill islands, and outdoor entertainment areas. |
|
What beverages can this unit dispense? The MOKR224-SSC1A's single wine and beverage tap uses nitrogen to dispense any non-carbonated draft beverage: wine (all varietals — red, white, rosé, sparkling is not recommended), still cocktails, nitrogen-infused cold brew coffee (nitro cold brew), iced tea, lemonade, and more. Nitrogen pushes the beverage without adding carbonation. For beer and carbonated beverages, choose the beer and beverage tap models (MOKR224-SSA1A or MOKR224-SSB1A) which use CO2 instead of nitrogen. |
|
What size kegs does this unit fit? The 5.7 cu. ft. interior fits 1 half barrel (full-size keg), 1 quarter barrel, 1 slim quarter barrel, 2 slim 1/6 barrels, or 2 Cornelius kegs. Cornelius ball-lock fitting is not included and must be purchased separately if using Cornelius kegs. |
|
Can this unit also function as a refrigerator? Yes. When the keg is removed, two included stow-on-board stainless steel shelves install inside the cabinet and convert the 5.7 cu. ft. interior into bottle and can storage. The unit then functions as a high-capacity outdoor refrigerator with the same 34°F–60°F temperature control. |
|
Is a nitrogen tank included? Yes. The MOKR224-SSC1A ships with a nitrogen tank. The tank will need to be filled at a local gas supplier before first use. The tank stores in a secure internal compartment inside the cabinet. |
|
Is there a mobile version of this dispenser? Yes. Marvel also offers the MOKR224 as a mobile beverage dispenser with four casters that allows the unit to roll from location to location. The mobile version shares the same 5.7 cu. ft. cabinet, draft tower, keg compatibility, and cooling system. Choose the built-in version for permanent installation in outdoor kitchen cabinetry, or the mobile version for portable use across different areas of your outdoor space. |
|
What is the difference between the single and twin tap models? The single tap model (MOKR224-SSC1A) has one faucet on one draft tower and dispenses one keg at a time. The twin tap model (MOKR224-SSD1A) has two faucets on one draft tower and can dispense two kegs simultaneously — ideal for offering guests a choice between two different wines or non-carbonated beverages. |
|
Is this unit ENERGY STAR certified? No. The MOKR224 built-in beverage dispenser series is not ENERGY STAR certified. This is the only Marvel outdoor product category that does not carry ENERGY STAR certification. |
|
What warranty covers the MOKR224-SSC1A? The MOKR224-SSC1A is covered by Marvel's standard warranty: one (1) year parts and labor from the date of original purchase, plus a five (5) year sealed system warranty covering the compressor, condenser, evaporator, drier, and all connecting tubing (parts only). Cosmetic defects are covered for 60 days. The warranty applies to the original purchaser only and is non-transferable. See the complete Marvel warranty document for full terms and conditions. |
|
Marvel Outdoor 24-Inch Built-In Beverage Dispenser — Single Wine & Beverage Tap |
|
| Manufacturer | Marvel Refrigeration (Middleby Residential) |
| Model Number | MOKR224-SSC1A |
| Collection | Marvel Outdoor Collection |
| Indoor / Outdoor Rated | Outdoor Use — Designed for Outdoor Installation |
| Configuration | Built-In Undercounter |
| Product Type | Outdoor Built-In Beverage Dispenser / Draft Wine & Beverage Dispenser |
| Tap Configuration | Single Wine & Beverage Tap (1 Faucet) |
| Gas Type | Nitrogen (Tank Included) |
| Draft Tower | Double-Insulated Stainless Steel |
| Coupler | Lo-Boy (U.S. Type D) |
|
Capacity & Storage |
|
| Total Capacity | 5.7 cu. ft. |
| Keg Compatibility | 1 Half Barrel, 1 Quarter Barrel, 1 Slim Quarter Barrel, 2 Slim 1/6 Barrels, or 2 Cornelius Kegs |
| Convertible Shelves | 2 Stow-On-Board Stainless Steel Shelves (for Bottle/Can Storage) |
| Drain System | Integrated Drain Basin & Drip Tray |
|
Temperature & Cooling |
|
| Temperature Range | 34°F to 60°F |
| Temperature Control | Digital Controls |
| Cooling System | Dynamic Cooling Technology |
|
Dimensions & Weight |
|
| Width | 23-7/8" |
| Depth (Without Door) | 23-3/4" |
| Depth (With Door) | 26-1/4" |
| Height | 33-3/4" to 34-3/4" |
| Height (With Top Plate) | 46-3/8" |
| Door Protrusion | 26-3/8" |
| Shipping Weight | 160–179.5 lbs |
| Shipping Dimensions | 28" W × 31" D × 37" H |
|
Cutout (Rough-In) Dimensions |
|
| Cutout Width | 24" |
| Cutout Depth | 24" |
| Cutout Height | 34" to 35" |
|
Controls & Features |
|
| Control Type | Digital |
| Alerts | Door Ajar, High/Low Temperature |
| Sabbath Mode | Yes |
| Interior Lighting | Arctic White LED Theater-Style |
| Door Lock | Yes |
| Door Swing | Field-Reversible (Left or Right) |
| Installation Type | Built-In Undercounter |
|
Exterior & Interior |
|
| Exterior Material | Stainless Steel |
| Door Style | Solid Stainless Steel |
| Interior Color | Arctic White |
|
Electrical & Refrigerant |
|
| Voltage / Frequency / Amperage | 115V / 60 Hz / 15A |
| Cord Length | 6 ft |
| Refrigerant Type | R-600a (Isobutane) |
| ENERGY STAR | No |
|
Warranty |
|
| Parts & Labor Warranty | 1 Year |
| Sealed System Warranty | 5 Years (Parts Only) |
| Cosmetic Defects | 60 Days from Date of Purchase |
|
Manufacturer |
|
| Brand | Marvel Refrigeration |
| Parent Company | Middleby Residential |
| Country of Origin | USA (Designed & Built in America) |
| Customer Service | +616.754.5601 | techsupport@MarvelRefrigeration.com |
| Website | MarvelRefrigeration.com |
|
Documentation & Resources |
|
| Specification Sheet | Download MOKR224 Spec Sheet |
| Warranty Document | Download Marvel Warranty |
